CMT2110AW - Low-Cost 240 - 960MHz OOK Transmitter

Product Overview

CMOSTEK

📥 Download Datasheet

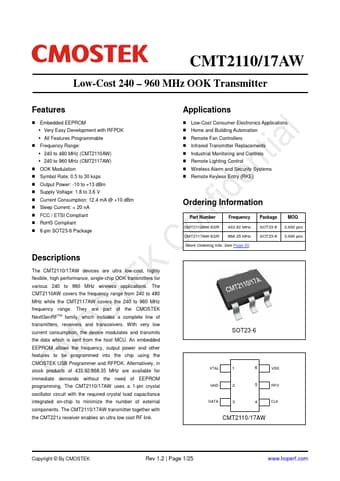

CMT2110AW Low-Cost 240 - 960MHz OOK Transmitter by CMOSTEK - Datasheet Preview — Datasheet preview – CMT2110AW

Datasheet Details

Part number	CMT2110AW
Manufacturer	CMOSTEK
File Size	665.62 KB
Description	Low-Cost 240 - 960MHz OOK Transmitter
Datasheet	CMT2110AW Datasheet
Additional preview pages of the CMT2110AW datasheet.

Product details

Description

The CMT2110/17AW devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 240 to 960 MHz wireless applications.

Features

Embedded EEPROM.
Very Easy Development with RFPDK.
All Features Programmable.
Frequency Range:.
240 to 480 MHz (CMT2110AW).
240 to 960 MHz (CMT2117AW).
OOK Modulation.
Symbol Rate: 0.5 to 30 ksps.
Output Power: -10 to +13 dBm.
Supply Voltage: 1.8 to 3.6 V.
Current Consumption: 12.4 mA @ +10 dBm.
Sleep Current: < 20 nA.
FCC / ETSI Compliant.
RoHS Compliant.
6-pin SOT23-6 Package.
