CMT2301 P-Channel MOSFET

CMT2301 Description

CMT2301 P-CHANNEL ENHANCEMENT MODE MOSFET GENERAL .
FEATURES The CMT2301 is the P-Channel logic enhancement mode ‹ power field effect transistors are produced using high cell ‹ density, DMOS trench.

CMT2301 Features

* The CMT2301 is the P-Channel logic enhancement mode ‹ power field effect transistors are produced using high cell ‹ density, DMOS trench technology. ‹ This high density process is especially tailored to minimize ‹ on-state resistance. These devices are particularly suited for low voltage ‹ a

CMT2301 Applications

* ‹ Power Management in Notebook ‹ Portable Equipment ‹ Battery Powered System ‹ DC/DC Converter ‹ Load Switch ‹ DSC ‹ LCD Display inverter PIN CONFIGURATION SOT-23-3 Top View 3 SYMBOL D G GATE DRAIN SOURCE 1 2 ORDERING INFORMATION Part Number CMT2301M233 CMT2301GM233
* Note: G : Suffi

📥 Download Datasheet

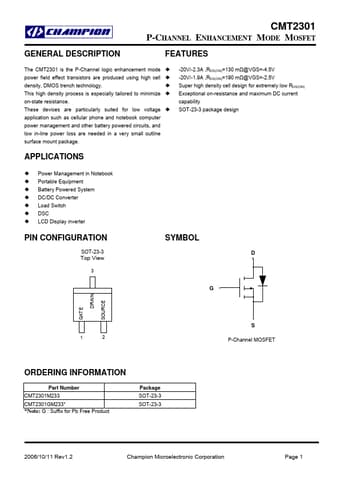

Preview of CMT2301 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMT2301
Manufacturer
Champion
File Size
219.51 KB
Datasheet
CMT2301-Champion.pdf
Description
P-Channel MOSFET
