CMT2113AW - Low-Cost 240 - 480MHz (G)FSK/OOK Transmitter

Product Overview

CMOSTEK

📥 Download Datasheet

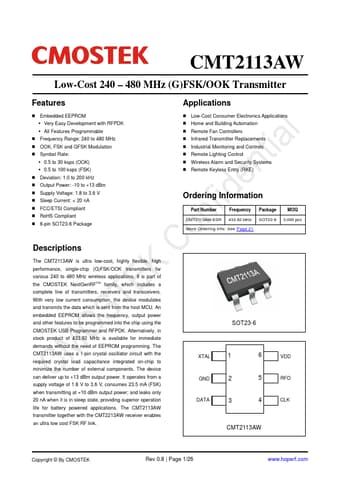

CMT2113AW Low-Cost 240 - 480MHz (G)FSK/OOK Transmitter by CMOSTEK - Datasheet Preview — Datasheet preview – CMT2113AW

Datasheet Details

Part number	CMT2113AW
Manufacturer	CMOSTEK
File Size	654.29 KB
Description	Low-Cost 240 - 480MHz (G)FSK/OOK Transmitter
Datasheet	CMT2113AW Datasheet
Additional preview pages of the CMT2113AW datasheet.

Product details

Description

The CMT2113AW is ultra low-cost, highly flexible, high performance, single-chip (G)FSK/OOK transmitters for various 240 to 480 MHz wireless applications.

Features

Embedded EEPROM.
Very Easy Development with RFPDK.
All Features Programmable.
Frequency Range: 240 to 480 MHz.
OOK, FSK and GFSK Modulation.
Symbol Rate:.
0.5 to 30 ksps (OOK).
0.5 to 100 ksps (FSK).
Deviation: 1.0 to 200 kHz.
Output Power: -10 to +13 dBm.
Supply Voltage: 1.8 to 3.6 V.
Sleep Current: < 20 nA.
FCC/ETSI Compliant.
RoHS Compliant.
6-pin SOT23-6 Package.
