CMT2117A

OOK Transmitter

CMOSTEK

CMT2117A Features

* Embedded EEPROM

* Very Easy Development with RFPDK

* All Features Programmable

* Frequency Range:

* 240 to 480 MHz (CMT2110A)

* 240 to 960 MHz (CMT2117A)

* OOK Modulation

* Symbol Rate: 0.5 to 30 ksps

* Output Power: -10 to +13 dBm

* Supply Voltage: 1.8 to 3

CMT2117A General Description

The CMT2110/17A devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 240 to 960 MHz wireless applications. The CMT2110A covers the frequency range from 240 to 480 MHz while the CMT2117A covers the 240 to 960 MHz frequency range. They are part of th.

CMT2117A Datasheet (858.07 KB)

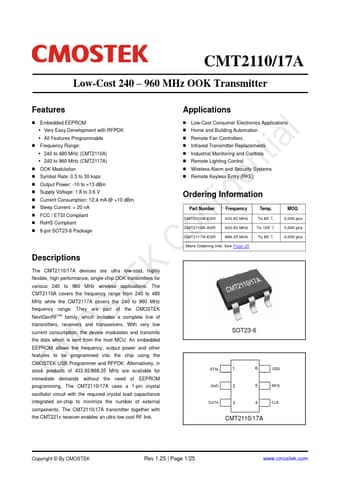

CMT2117A Datasheet Preview — Preview of CMT2117A PDF

Datasheet Details

Part number:

CMT2117A

Manufacturer:

CMOSTEK

File Size:

858.07 KB

Description:

Ook transmitter.
