CMT2110B - OOK Transmitter

Product Overview

CMOSTEK

📥 Download Datasheet

CMT2110B OOK Transmitter by CMOSTEK - Datasheet Preview — Datasheet preview – CMT2110B

Datasheet Details

Part number	CMT2110B
Manufacturer	CMOSTEK
File Size	1.06 MB
Description	OOK Transmitter
Datasheet	CMT2110B Datasheet

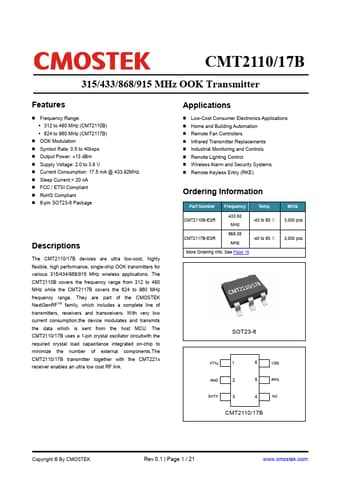

Additional preview pages of the CMT2110B datasheet.

Product details

Description

The CMT2110/17B devices are ultra low-cost, highly flexible, high performance, single-chip OOK transmitters for various 315/434/868/915 MHz wireless applications.

Features

Frequency Range:.
312 to 480 MHz (CMT2110B).
624 to 960 MHz (CMT2117B).
OOK Modulation.
Symbol Rate: 0.5 to 40ksps.
Output Power: +13 dBm.
Supply Voltage: 2.0 to 3.6 V.
Current Consumption: 17.5 mA @ 433.92MHz.
Sleep Current:< 20 nA.
FCC / ETSI Compliant.
RoHS Compliant.
6-pin SOT23-6 Package.
