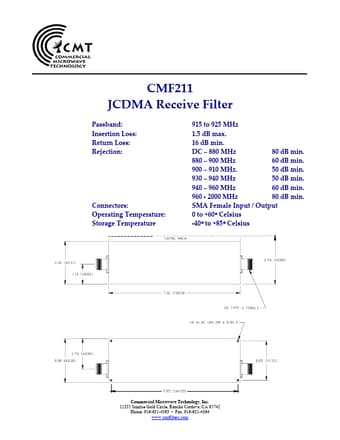

CMF211 JCDMA Receive Filter

___________________________________________________________________________________________________ CMF211 JCDMA Receive Filter Passband: Insertion Loss: Return Loss: Rejection: 915 to 925 MHz 1.5 dB max. 16 dB min. DC 880 MHz 80 dB min. 880 900 MHz 60 dB min. 900 910 MHz. 50 dB min. 930 940 MHz 50 dB min. 940 960 MHz 60 dB min. 960 - 2000 MHz 80 dB min. SMA Female Input / Output 0 to +60° Celsius -40° to +85° Celsius Connectors: Operating Temp.

CMF211 Datasheet (168.99 KB)

CMF211 Datasheet Preview — Preview of CMF211 PDF

Datasheet Details

Part number:

CMF211

Manufacturer:

CMT

File Size:

168.99 KB

Description:

Jcdma receive filter.
