CMF20120D Silicon Carbide Power MOSFET

CMF20120D Description

CMF20120D-Silicon Carbide Power MOSFET Z-FeTTM MOSFET .

CMF20120D Features

* Package VDS ID(MAX) R 1200 V 42 A 80mΩ DS(on) N-Channel Enhancement Mode
* High Speed Switching with Low Capacitances High Blocking Voltage with Low RDS(on) Easy to Parallel and Simple to Drive Avalanche Ruggednes

CMF20120D Applications

* Solar Inverters High Voltage DC/DC Converters Motor Drives Switch Mode Power Supplies UPS Part Number CMF20120D Package TO-247-3 Maximum Ratings (TC = 25˚C unless otherwise specified) Symbol Parameter Continuous Drain Current Value 42 2

📥 Download Datasheet

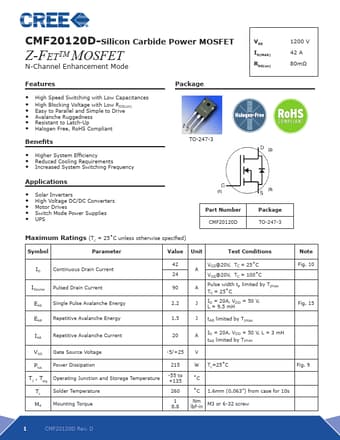

Preview of CMF20120D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMF20120D
Manufacturer
Cree
File Size
760.98 KB
Datasheet
CMF20120D-Cree.pdf
Description
Silicon Carbide Power MOSFET
