CMF241 Datasheet - CMT

CMF241 PCS A-D Band Transmit Filter

___________________________________________________________________________________________________ CMF241 PCS A/D Band Transmit Filter Return Rejection: 1870 1910 1960 2000 Passband: 1930 Insertion Loss: 0.5 Loss: - 1950 MHz dB max. 18.0 dB min. DC - 1870 MHz 85 dB min. - 1910 MHz 65 dB min. 1920 MHz 15 dB min. 1970 MHz 15 dB min. 10000 MHz 45 dB min. -100 dBm min. with 32 carriers at +40 dBm 360 Watts Average 0 to +60° Celsius -40° to +85° Celsius 3rd order IMD:.

CMF241 Datasheet (173.12 KB)

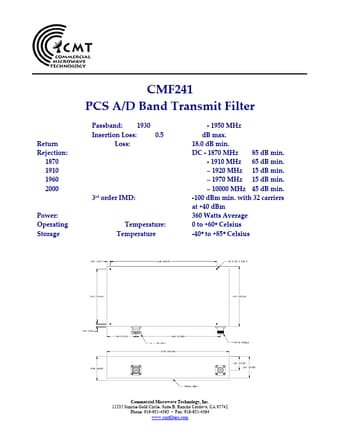

CMF241 Datasheet Preview — Preview of CMF241 PDF

Datasheet Details

Part number:

CMF241

Manufacturer:

CMT

File Size:

173.12 KB

Description:

Pcs a-d band transmit filter.
