* Resistant to Ambient Environmental Conditions
* Case Material : Plastic Housing
* Construction : Thermo Resist Epoxy Encapsulated
* Wires : #18 AWG Stranded Copper Wire, Black Neoprene Insulated DIMENSIONS 8.820 (224.03) 7.000 (177.80) MOUNTING CLIP #8 RING TERM
AG3011-77C Datasheet (362.02 KB)
AG3011-77C
COMUS
362.02 KB
Encapsulated tilt switch.
Group

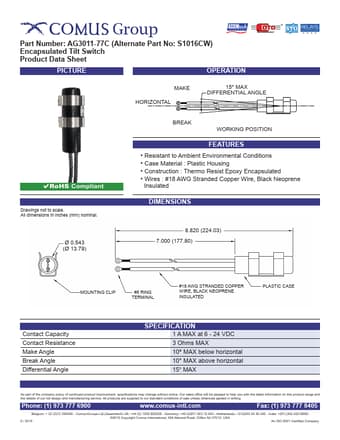

Part Number: AG3011-77C (Alternate Part No: S1016CW) Encapsulated Tilt Switch Product Data Sheet
OPERATION
MAKE HORIZONTAL
15° MAX .
