AG303-86 - InGaP HBT Gain Block

Datasheet Summary

Description

The AG303-86 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package.

At 900 MHz, the AG303-86 typically provides 20.5 dB gain, +26 dBm OIP3, and +14 dBm P1dB.

Features

  • DC.
  • 6000 MHz.
  • 20.5 dB Gain @ 900 MHz.
  • +14 dBm P1dB @ 900 MHz.
  • +26 dBm OIP3 @ 900 MHz.
  • Single Voltage Supply.
  • Internally matched to 50 Ω.
  • Robust 1000V ESD, Class 1C.
  • Lead-free/RoHS-compliant SOT- 86 package.

📥 Download Datasheet

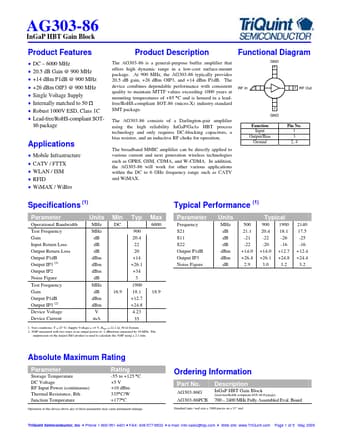

Datasheet preview – AG303-86
