CN5711

1.5A High Brightness LED Driver IC

CN5711 Features

* include chip enable,etc. CN5711 is available in thermally-enhanced 8-pin small outline package (SOP8). Features

* Operating Voltage Range: 2.8V to 6V

* On-chip Power MOSFET

* Low Dropout Voltage: 0.37V @ 1.5A

* LED Current up to 1.5A

* Output Current Accuracy: ± 5%

* Chip Te

CN5711 General Description

The CN5711 is a current regulation integrated circuit operating from an input voltage of 2.8V to 6V, the constant output current can be set up to 1.5A with an external resistor. The CN5711 is ideal for driving LED. The on-chip power MOSFET and current sense block greatly reduce the number of externa.

CN5711 Datasheet (162.03 KB)

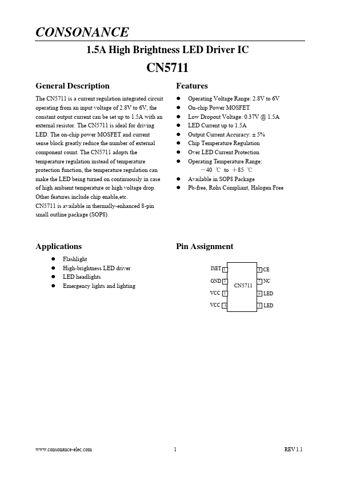

Preview of CN5711 PDF

Datasheet Details

Part number:

CN5711

Manufacturer:

CONSONANCE

File Size:

162.03 KB

Description:

1.5a high brightness led driver ic.
