MINI STEP MOTOR
1511P0209 PM Permanent Magnet
: 、、、。 Applications: security systems, office automation systems, medical equipment, mini household appliances, toys, etc.
| Characteristics
1 2 3 4 5 6 7 8 9 10 11 12 13
No. of phase Excitation Mode Voltage Resistance Step Angle Current No-load Pull-in Frequency No-load Pull-out Frequency Detent Torque Pull-in Torque Load pull-in Frequency Weight Operating temperature range
V Ω Deg A pps pps mNm mNm pps g ℃
-013-5.0-002 2 2-2 5.0
12.6 18° 0.4 ≥1200 ≥1300 0.40 1 ≥800 9.0 -20~+80
-013-6.5-0019 2 2-2 6.5
12.6 18° 0.5 ≥1200 ≥1300 0.40 1 ≥500 8.

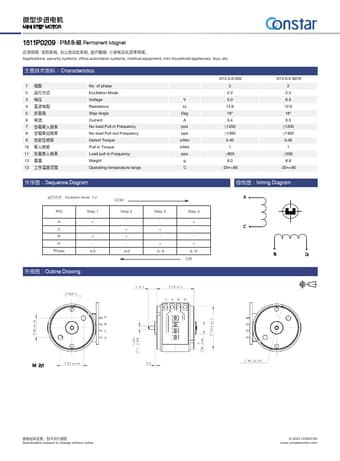

1511P0209 Datasheet
