1515SQ-68N Square Air Core Inductors

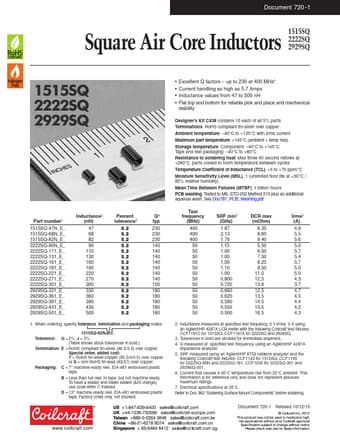

Document 720 -1 Square Air Core Inductors 1515SQ 2222SQ 2929SQ Excellent Q factors up to 230 at 400 MHz! Current handling as high as 5.7 Amps Inductance values from 47 to 500 nH Flat top and bottom for reliable pick and place and mechanical stability Designer’s Kit C438 contains 10 each of all 5% parts Terminations RoHS compliant tin-silver over copper Ambient temperature 40°C to +125°C with Irms current Maximum part tempera.
