1510FA - (1510xA) Single Phase Bridge

This page provides the datasheet information for the 1510FA, a member of the 1510A (1510xA) Single Phase Bridge family.

VMI

1510FA (1510xA) Single Phase Bridge by VMI - Datasheet Preview — Datasheet preview – 1510FA

Datasheet Details

Part number	1510FA
Manufacturer	VMI
File Size	98.29 KB
Description	(1510xA) Single Phase Bridge
Datasheet	1510FA Datasheet
Additional preview pages of the 1510FA datasheet.

📁 Similar Datasheet

1511P0209 - MINI STEP MOTOR (CONSTAR)
1515SQ - Square Air Core Inductors (Coilcraft)
1515SQ-47N - Square Air Core Inductors (Coilcraft)
1515SQ-68N - Square Air Core Inductors (Coilcraft)
1515SQ-82N - Square Air Core Inductors (Coilcraft)
1516BQ - TDA1516BQ (NXP Semiconductors)
1517 - 5-TAP DIP DELAY LINE (ETC)
1517 - 2 X 6 W stereo power amplifier (Long-Semi)
1517-100D - 5-TAP DIP DELAY LINE (ETC)
1517-100F - 5-TAP DIP DELAY LINE (ETC)

Other Datasheets by VMI

1510A - (1510xA) Single Phase Bridge
1510UFA - (1510xA) Single Phase Bridge

Full PDF Text Transcription

Click to expand full text

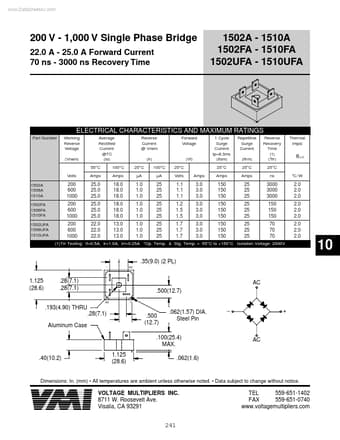

www.DataSheet4U.com 200 V - 1,000 V Single Phase Bridge 22.0 A - 25.0 A Forward Current 70 ns - 3000 ns Recovery Time 1502A - 1510A 1502FA - 1510FA 1502UFA - 1510UFA ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current @TC (Io) 55°C Volts 1502A 1506A 1510A 1502FA 1506FA 1510FA 1502UFA 1506UFA 1510UFA Amps 100°C Amps Reverse Current @ Vrwm (Ir) 25°C µA 100°C µA 25°C Volts Amps Forward Voltage 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps Repetitive Surge Current (Ifrm) 25°C Amps Reverse Recovery Time (1) (Trr) 25°C ns °C / W Thermal Impd. (Vf) uJ-C 200 600 1000 200 600 1000 200 600 1000 25.0 25.0 25.0 25.0 25.0 25.0 22.0 22.0 22.0 18.0 18.0 18.0 18.0 18.0 18.0 13.0 13.0 13.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.
