CBM9001A Datasheet - COREBAI

CBM9001A, Embedded USB Host/Slave Controller

Embedded USB Host/Slave Controller CBM9001A Datasheet .
First USB Host/Slave controller for embedded systems in the market with a standard microprocessor bus interface. Supports both full speed.

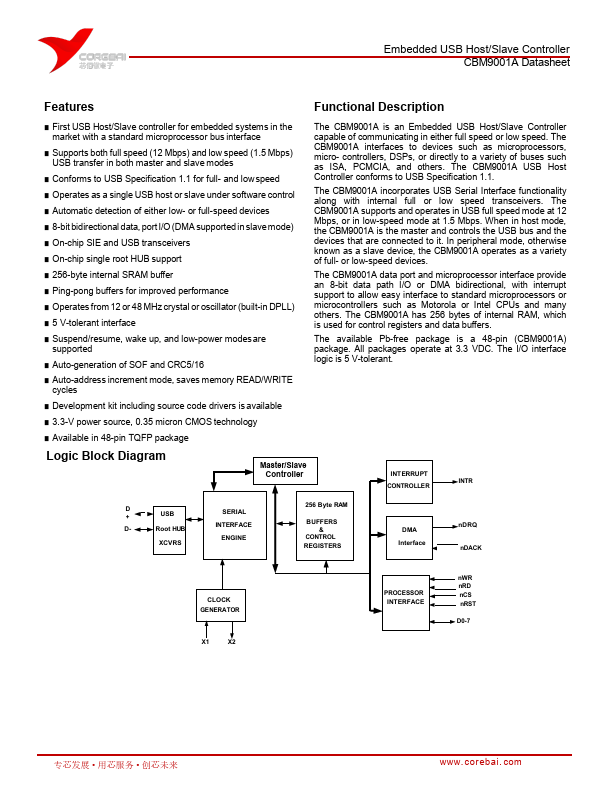

datasheet Preview Page 1 from Datasheet4u.com

CBM9001A-COREBAI.pdf

CBM9001A Datasheet Preview — Preview of CBM9001A PDF

Datasheet Details

Part number:

CBM9001A

Manufacturer:

COREBAI

File Size:

0.96 MB

Description:

Embedded USB Host/Slave Controller

Applications

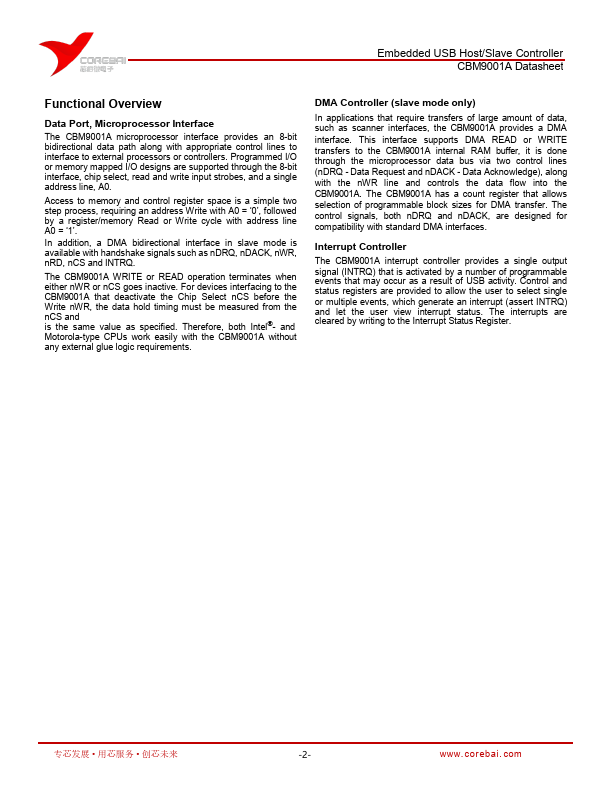

* that require transfers of large amount of data, such as scanner interfaces, the CBM9001A provides a DMA interface. This interface supports DMA READ or WRITE transfers to the CBM9001A internal RAM buffer, it is done through the microprocessor data bus via two control lines (nDRQ - Data Request and nD
