CBM9002A Datasheet - COREBAI

CBM9002A USB microcontroller

CBM9002A series is a USB microcontroller based on the enhanced 8051 core in line with the industrial standard. It supports two modes of USB2.0 protocol, high-speed 480mbps and full-speed 12mbps. The enhanced 8051 can work at 48, 24 and 12Mhz frequencies; Each instruction cycle is 4 clocks, which is .

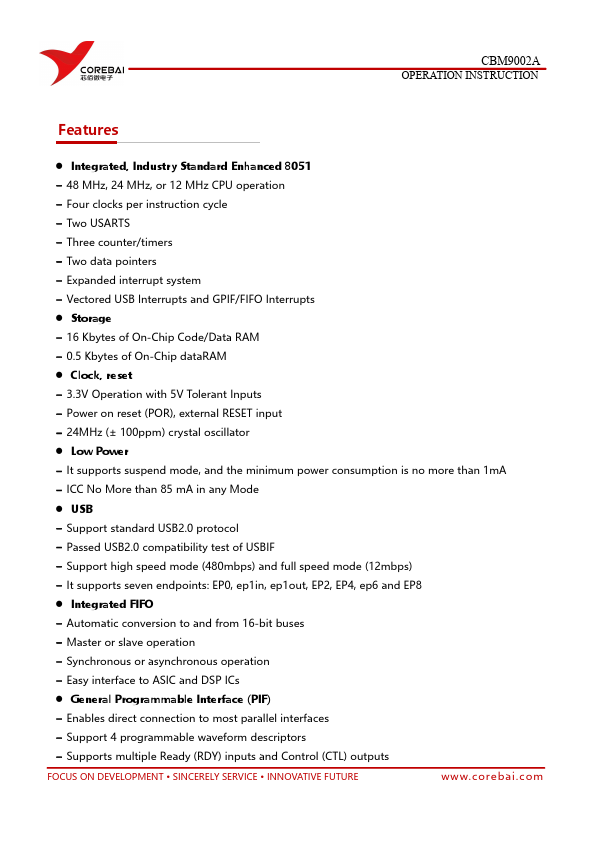

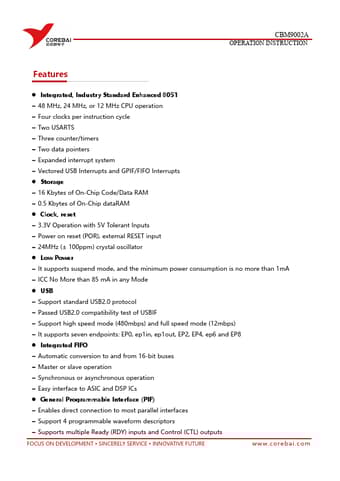

CBM9002A Features

* Integrated, Industry Standard Enhanced 8051 - 48 MHz, 24 MHz, or 12 MHz CPU operation - Four clocks per instruction cycle - Two USARTS - Three counter/timers - Two data pointers - Expanded interrupt system - Vectored USB Interrupts and GPIF/FIFO Interrupts

* Storage - 16 Kbytes of

CBM9002A-COREBAI.pdf

Preview of CBM9002A PDF

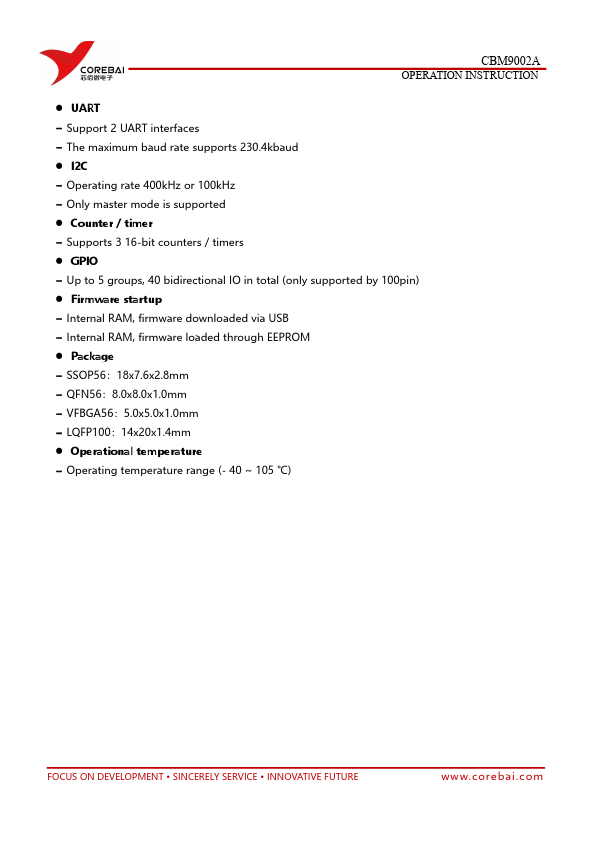

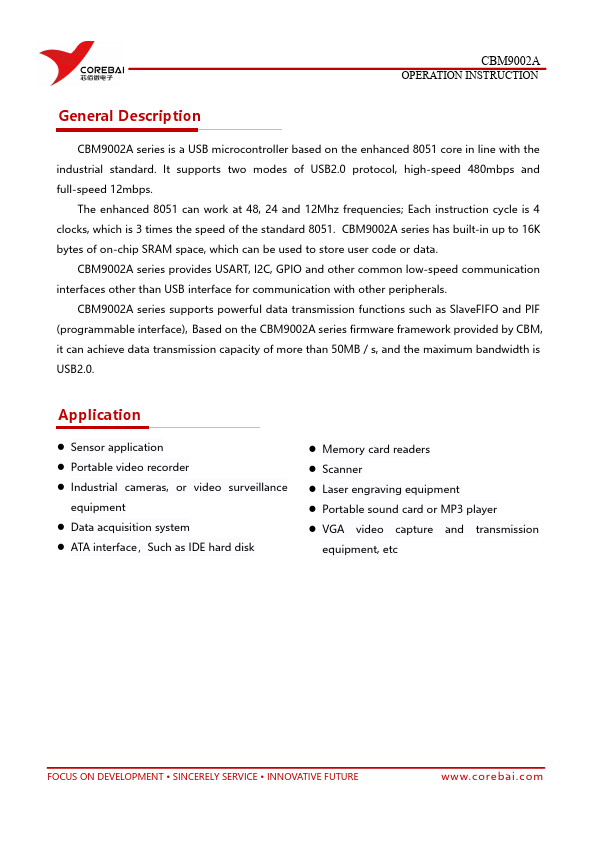

CBM9002A Datasheet Preview Page 2 CBM9002A Datasheet Preview Page 3

Datasheet Details

Part number:

CBM9002A

Manufacturer:

COREBAI

File Size:

2.26 MB

Description:

Usb microcontroller.
