CBM14AD50Q Datasheet - COREBAI

CBM14AD50Q 14-bit 50MSPS A/D converter

* Analog Power Supply Voltage: 3.0V to 3.3V * Digital Power Supply Voltage: 2.5V to 3.3V * Maximum Sampling Rate: 50MSPS * Signal-to-Noise Ratio: ≥65dB * Differential Nonlinearity Error: ±1.5LSB * Power Consumption: ≤414mW * Analog Input Range: 1VPP to 2VPP * Circuit.

CBM14AD50Q-COREBAI.pdf

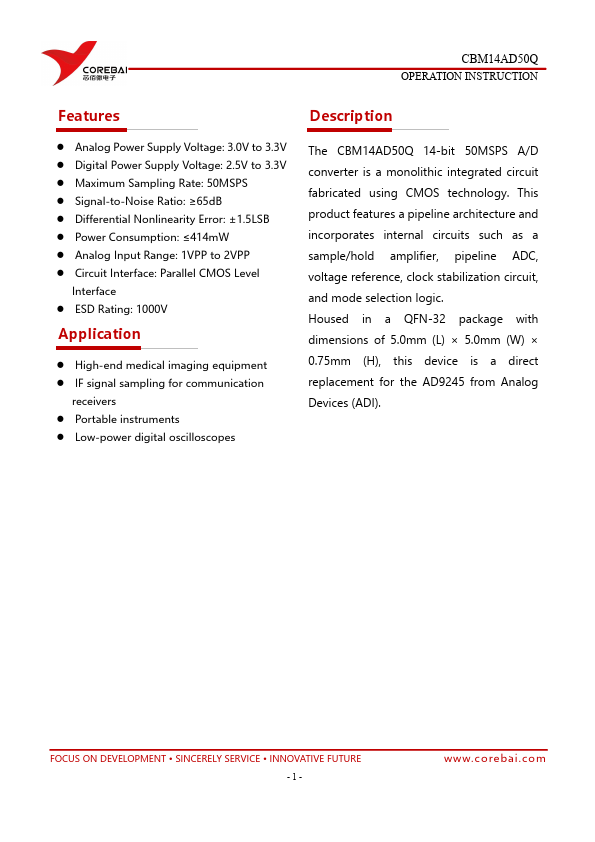

Preview of CBM14AD50Q PDF

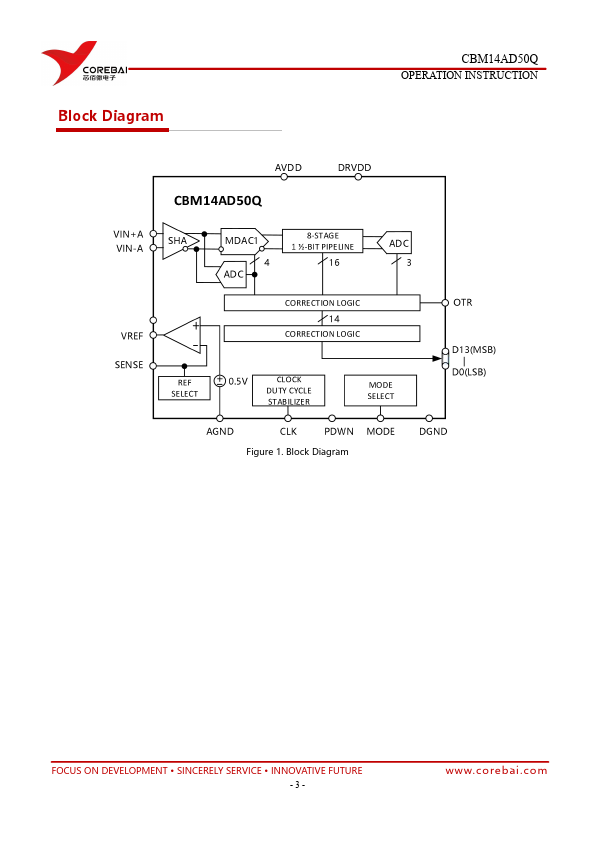

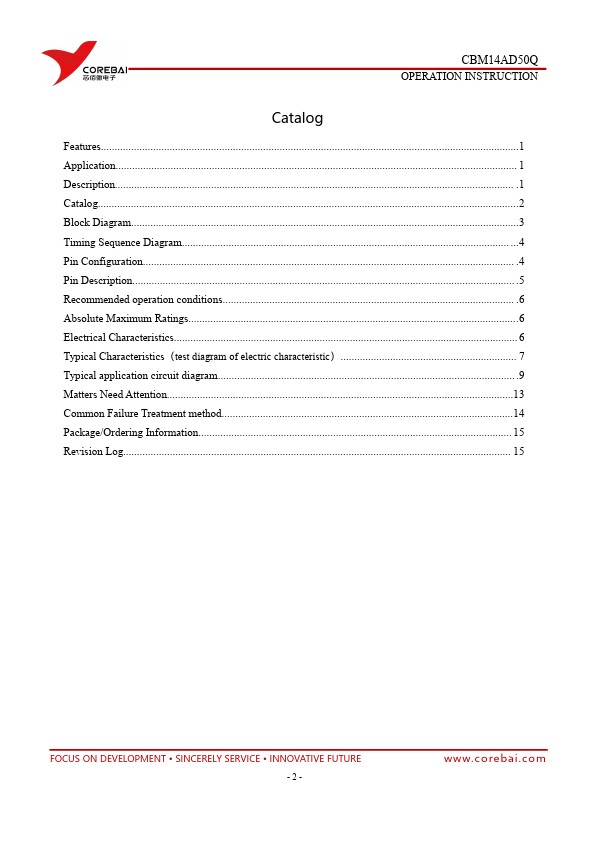

CBM14AD50Q Datasheet Preview Page 2 CBM14AD50Q Datasheet Preview Page 3

Datasheet Details

Part number:

CBM14AD50Q

Manufacturer:

COREBAI

File Size:

952.77 KB

Description:

14-bit 50msps a/d converter.

CBM14AD50Q Distributor
