CBM2576-15, CBM2576 regulators

Description

CBM2576-XX OPERATION INSTRUCTION .
The CBM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step. down switching re.

📥 Download Datasheet

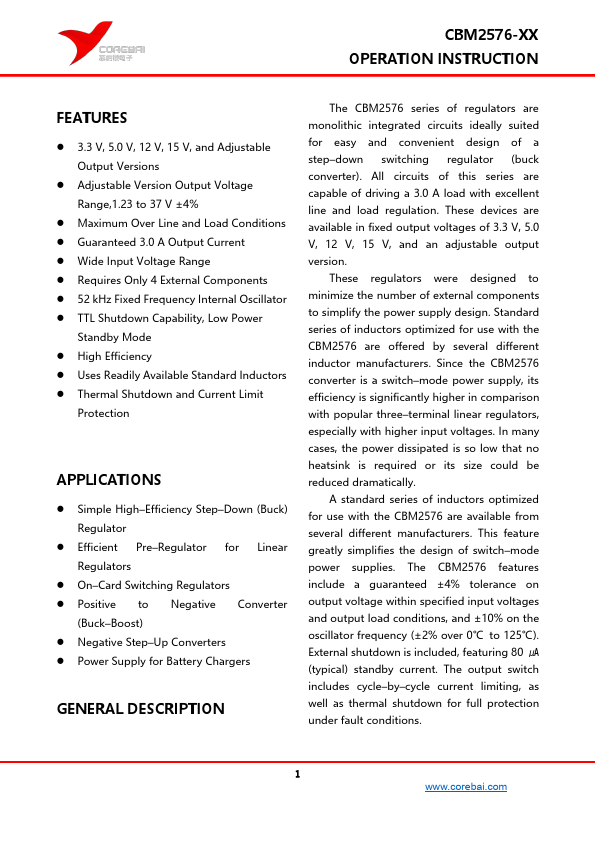

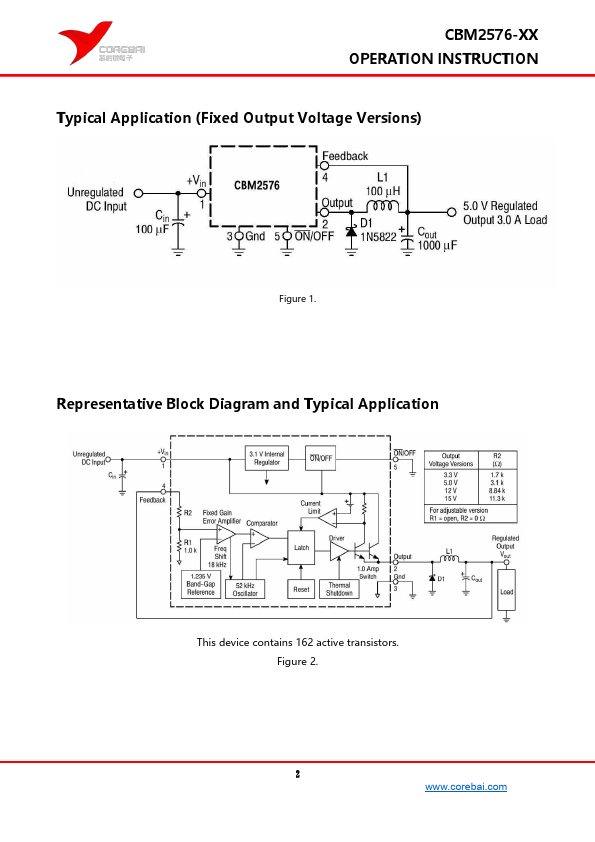

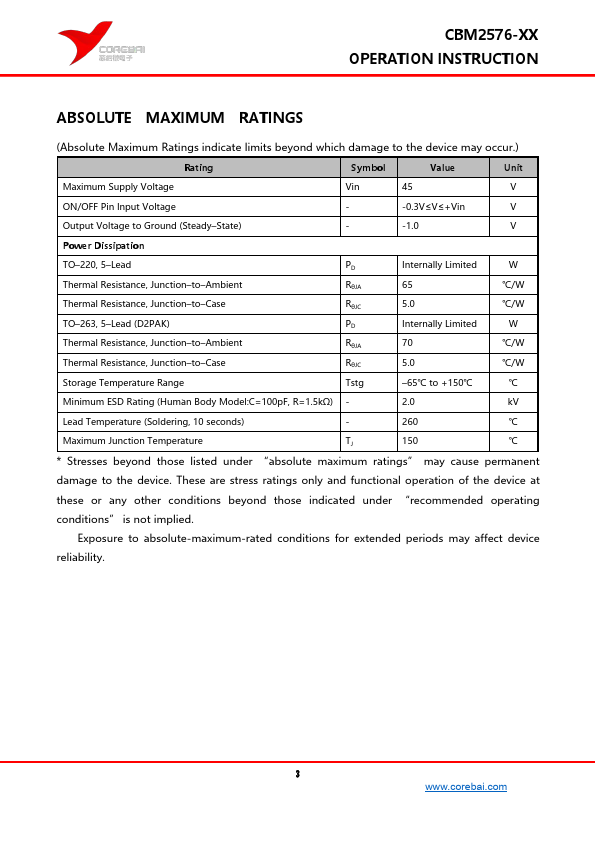

CBM2576-15 Datasheet Preview — This datasheet PDF includes multiple part numbers: CBM2576-15, CBM2576. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CBM2576-15, CBM2576
Manufacturer: COREBAI
File Size: 702.80 KB
Datasheet: CBM2576-COREBAI.pdf
Description: regulators
Note: This datasheet PDF includes multiple part numbers: CBM2576-15, CBM2576.
Please refer to the document for exact specifications by model.

Features

* 3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions
* Adjustable Version Output Voltage Range,1.23 to 37 V ±4%
* Maximum Over Line and Load Conditions
* Guaranteed 3.0 A Output Current
* Wide Input Voltage Range
* Requires Only 4 External Components
* 52 kHz Fixed

Applications

* Simple High
* Efficiency Step
* Down (Buck) Regulator
* Efficient Pre
* Regulator for Linear Regulators
* On
* Card Switching Regulators
* Positive to Negative Converter (Buck
* Boost)
* Negative Step
* Up Converters
* Power Supply for Ba
