CBM2576 - regulators

📥 Download Datasheet

CBM2576 Datasheet Preview — Preview of CBM2576 PDF

Datasheet Details

Part number: CBM2576
Manufacturer: COREBAI
File Size: 702.80 KB
Datasheet: CBM2576-COREBAI.pdf
Description: regulators

CBM2576 Product details

Description

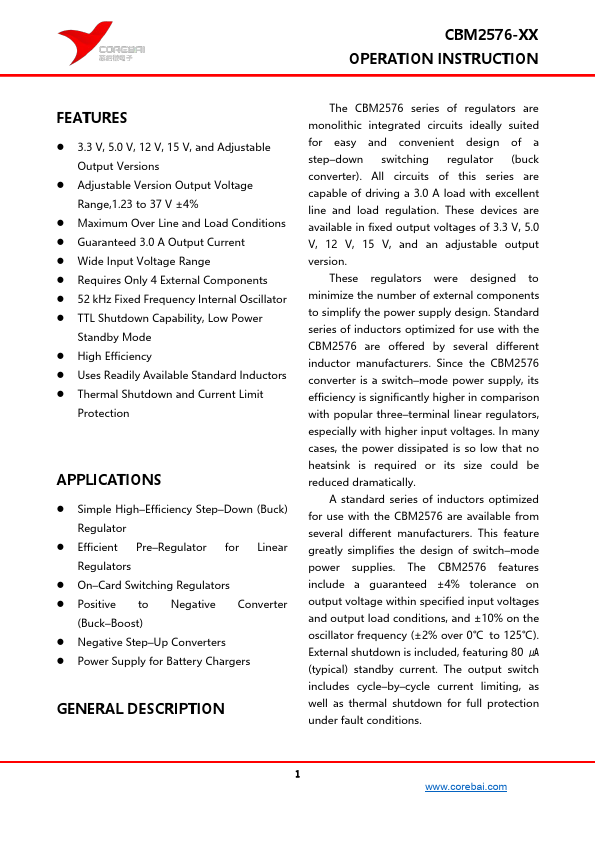

The CBM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step down switching regulator (buck converter).

Features

3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions.
Adjustable Version Output Voltage Range,1.23 to 37 V ±4%.
Maximum Over Line and Load Conditions.
Guaranteed 3.0 A Output Current.
Wide Input Voltage Range.
Requires Only 4 External Components.
52 kHz Fixed Frequency Internal Oscillator.
TTL Shutdown Capability, Low Power Standby Mode.
High Efficiency.
Uses Readily Available Standard Inductors.
Thermal Shutdown and Current Limit Prote.
