CBM2596-3 - regulators

📥 Download Datasheet

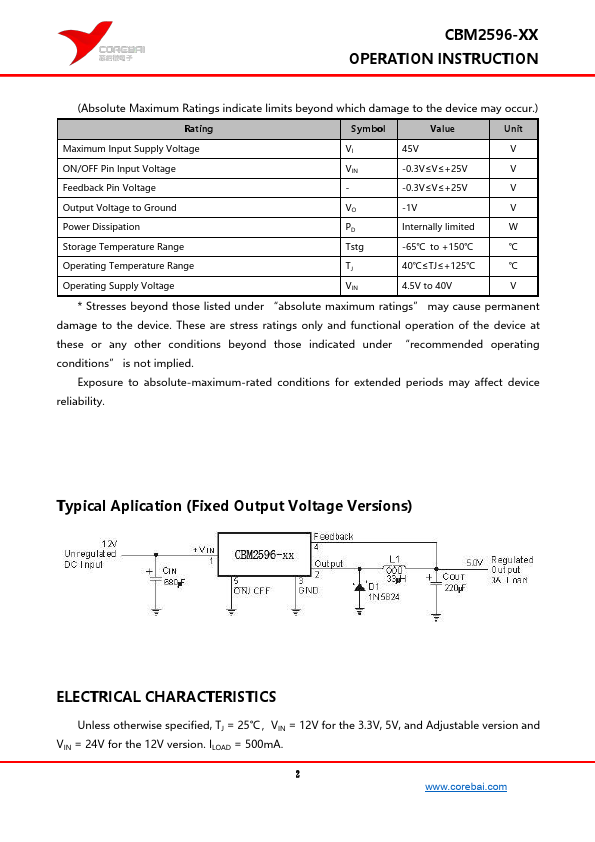

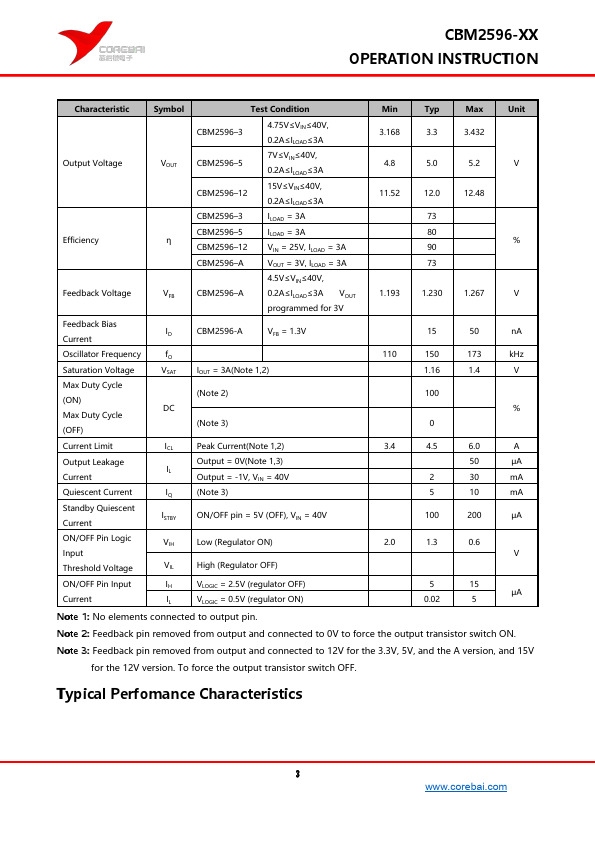

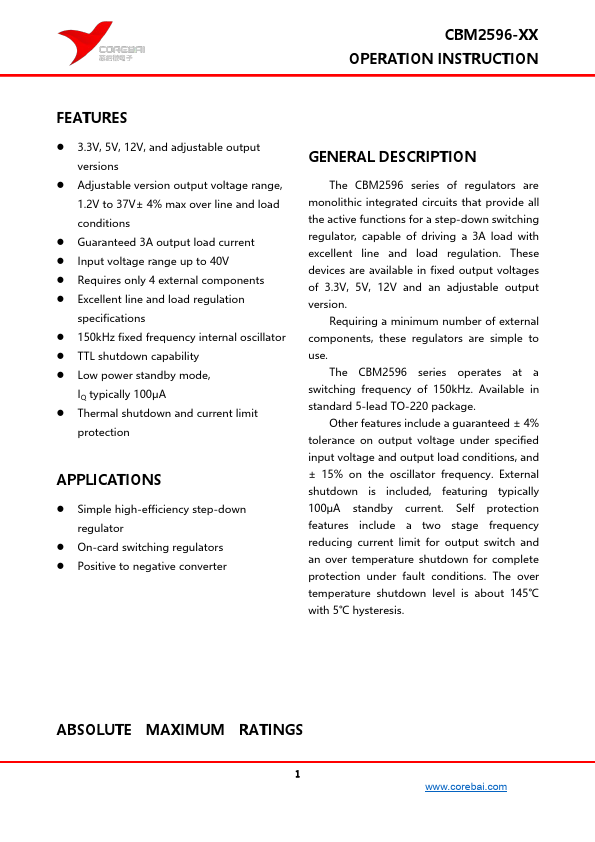

CBM2596-3 Datasheet Preview — Preview of CBM2596-3 PDF

Datasheet Details

Part number: CBM2596-3
Manufacturer: COREBAI
File Size: 745.51 KB
Datasheet: CBM2596-3-Corebai.pdf
Description: regulators

CBM2596-3 Product details

Description

The CBM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down switching regulator, capable of driving a 3A load with excellent line and load regulation.

Features

3.3V, 5V, 12V, and adjustable output versions.
Adjustable version output voltage range, 1.2V to 37V± 4% max over line and load conditions.
Guaranteed 3A output load current.
Input voltage range up to 40V.
Requires only 4 external components.
Excellent line and load regulation specifications.
150kHz fixed frequency internal oscillator.
TTL shutdown capability.
Low power standby mode, IQ typically 100μA.
Thermal shutdown and current limit protecti.
