CBM2596-12 regulators

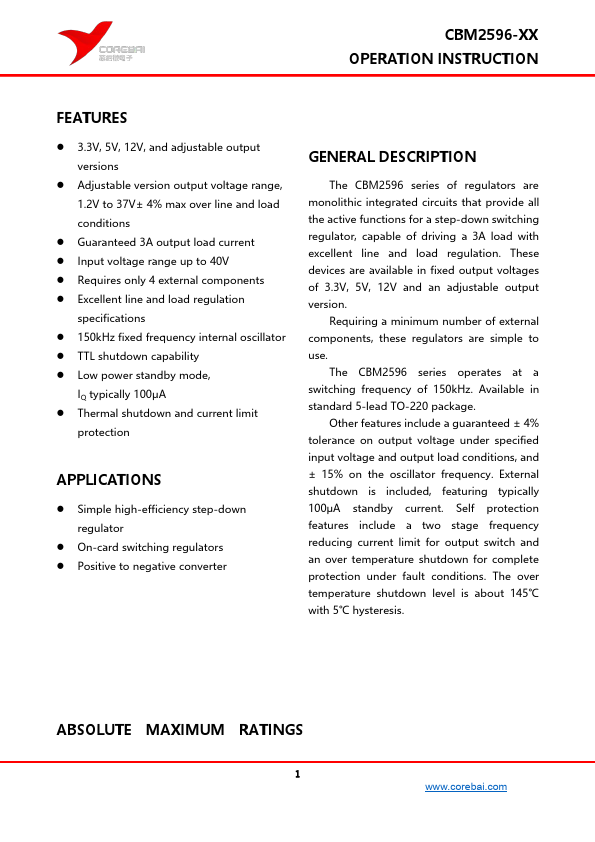

The CBM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V and an adjustable.

CBM2596-12 Features

* 3.3V, 5V, 12V, and adjustable output versions

* Adjustable version output voltage range, 1.2V to 37V± 4% max over line and load conditions

* Guaranteed 3A output load current

* Input voltage range up to 40V

* Requires only 4 external components

* Excellent line and load reg

CBM2596-3-Corebai.pdf

CBM2596-12 Datasheet Preview — This datasheet PDF includes multiple part numbers: CBM2596-12, CBM2596-3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CBM2596-12, CBM2596-3

Manufacturer:

COREBAI

File Size:

745.51 KB

Description:

Regulators.

Note:

This datasheet PDF includes multiple part numbers: CBM2596-12, CBM2596-3.
Please refer to the document for exact specifications by model.
