CBM2596-A, CBM2596-3 regulators

Description

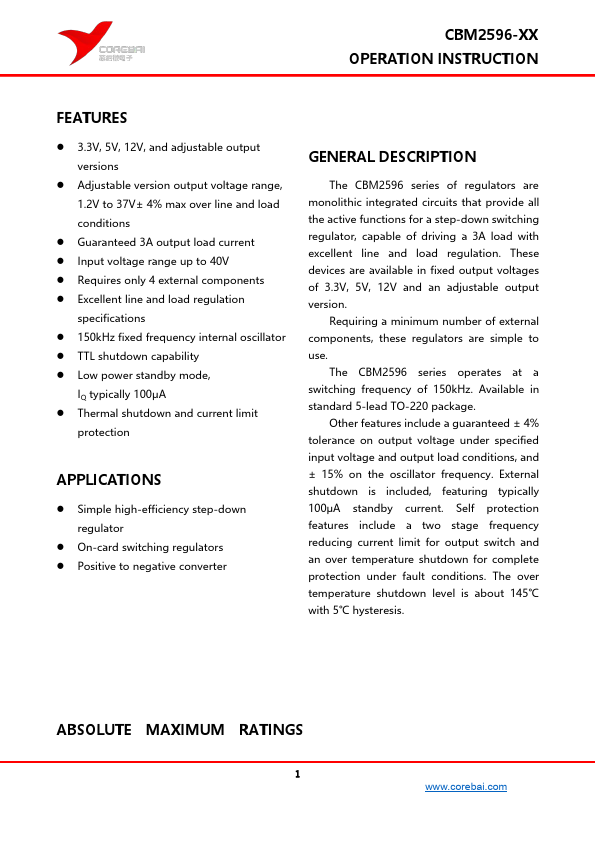

CBM2596-XX OPERATION INSTRUCTION .
The CBM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down switching regulator, capable.

📥 Download Datasheet

CBM2596-A Datasheet Preview — This datasheet PDF includes multiple part numbers: CBM2596-A, CBM2596-3. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CBM2596-A, CBM2596-3
Manufacturer: COREBAI
File Size: 745.51 KB
Datasheet: CBM2596-3-Corebai.pdf
Description: regulators
Note: This datasheet PDF includes multiple part numbers: CBM2596-A, CBM2596-3.
Please refer to the document for exact specifications by model.

Features

* 3.3V, 5V, 12V, and adjustable output versions
* Adjustable version output voltage range, 1.2V to 37V± 4% max over line and load conditions
* Guaranteed 3A output load current
* Input voltage range up to 40V
* Requires only 4 external components
* Excellent line and load reg

Applications

* Simple high-efficiency step-down regulator
* On-card switching regulators
