CBM2576-5 regulators

The CBM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step *down switching regulator (buck converter). All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. These devices are a.

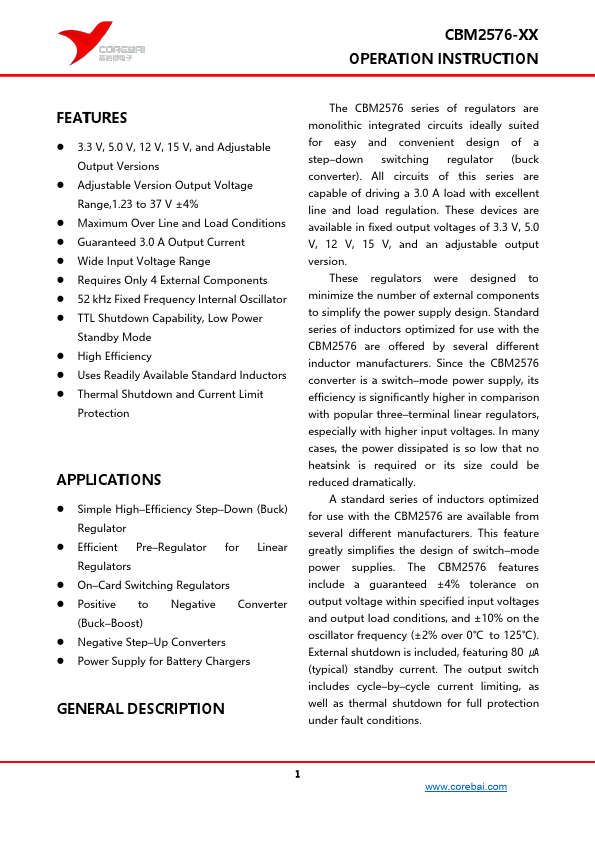

CBM2576-5 Features

* 3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions

* Adjustable Version Output Voltage Range,1.23 to 37 V ±4%

* Maximum Over Line and Load Conditions

* Guaranteed 3.0 A Output Current

* Wide Input Voltage Range

* Requires Only 4 External Components

* 52 kHz Fixed

CBM2576-COREBAI.pdf

CBM2576-5 Datasheet Preview — This datasheet PDF includes multiple part numbers: CBM2576-5, CBM2576. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CBM2576-5, CBM2576

Manufacturer:

COREBAI

File Size:

702.80 KB

Description:

Regulators.

Note:

This datasheet PDF includes multiple part numbers: CBM2576-5, CBM2576.
Please refer to the document for exact specifications by model.
