KPC357NT 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER

COSMO Electronics Corporation

Description

Hemar AG, Fendler 50, CH-5524 Nesselnbach, Tel: +41 (0)56 618 31 41, Fax +41 (0)56 618 31 42 http://www.hemar.ch Mini-flat package General purpose Ph.

📥 Download Datasheet

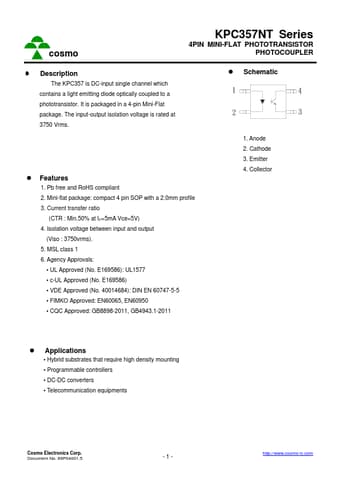

KPC357NT Datasheet Preview — Preview of KPC357NT PDF

Datasheet Specifications

Part number: KPC357NT
Manufacturer: COSMO Electronics Corporation
File Size: 188.68 KB
Datasheet: KPC357NT_COSMOElectronicsCorporation.pdf
Description: 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER

Features

* 1. Opaque type, mini-flat package. 2. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%). 3. Current transfer ratio (CTR:MIN.50% at IF=5mA, Vce=5V) 4. Isolation voltage between input and output (Viso:3750Vrms). KPC357NT UL 1577 (File No. E169586) Outsi

Applications

* 1. Hybrid substrates that reguire high density mounting. 2. Programmable controllers. Classification table of current transfer ratio is shown below. t=0.254+0.05mm TOLERANCE :+ 0.2mm Schematic : Top View 1. Anode 2. Cathode 3. Emitter 4. Collector Absolute Maximum Ratings Parameter Input Forward c
