KPC357NT0WD, KPC357NT0W, 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER

cosmo KPC357NT0W Series 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER * .
The KPC357NT0W is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor.

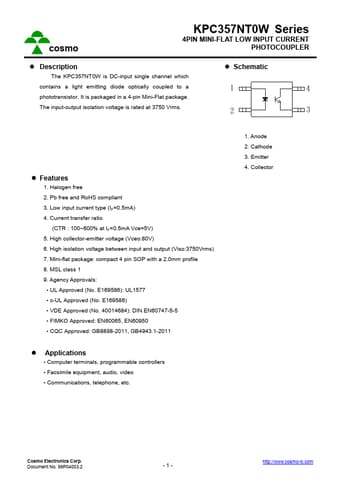

datasheet Preview Page 1 from Datasheet4u.com

KPC357NT0W-Cosmo.pdf

KPC357NT0WD Datasheet Preview — This datasheet PDF includes multiple part numbers: KPC357NT0WD, KPC357NT0W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KPC357NT0WD, KPC357NT0W

Manufacturer:

Cosmo

File Size:

206.83 KB

Description:

4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: KPC357NT0WD, KPC357NT0W.
Please refer to the document for exact specifications by model.

Features

* 1. Halogen free 2. Pb free and RoHS compliant 3. Low input current type (IF=0.5mA) 4. Current transfer ratio (CTR : 100~600% at IF=0.5mA Vce=5V) 5. High collector-emitter voltage (Vceo:80V) 6. High isolation voltage between input and output (Viso:3750Vrms) 7. Mini-flat package: compact 4 pin SOP wit

Applications

* Computer terminals, programmable controllers
* Facsimile equipment, audio
