KPC6N135H, KPC6N135 - 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

KPC6N135H Description

cosmo KPC6N135 Series 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER * .
Schematic The KPC6N135 series consist of a LED optically 876 5 coupled to an OPIC chip.

KPC6N135H Features

* 1. Pb free and RoHS compliant 2. High speed response tPHL, tPLH ( Max. 1.5us at RL=4.1KΩ ) 3. High common mode rejection voltage ( CMH：TYP. 1KV/us ) 4. Standard dual-in-line package 5. MSL class 1 6. Agency Approvals:
* UL Approved (No. E169586): UL1577
* c-UL Approved (No. E169586)

KPC6N135H Applications

* Computers, measuring instruments, control equipment
* High speed line receivers, high speed logic
* Telephone sets
* Signal transmission between circuits of different potentials and impedances

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KPC6N135H, KPC6N135. Please refer to the document for exact specifications by model.

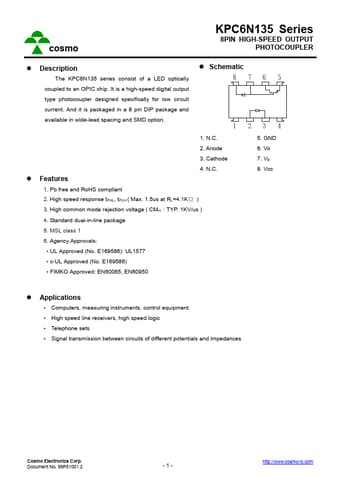

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPC6N135H, KPC6N135
Manufacturer
Cosmo
File Size
333.89 KB
Datasheet
KPC6N135-Cosmo.pdf
Description
8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
Note
This datasheet PDF includes multiple part numbers: KPC6N135H, KPC6N135.
Please refer to the document for exact specifications by model.
