KPC6N135L, KPC6N135 Datasheet - Cosmo

KPC6N135L 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

* Schematic The KPC6N135 series consist of a LED optically 876 5 coupled to an OPIC chip. It is a high-speed digital output type photocoupler designed specifically for low circuit current. And it is packaged in a 8 pin DIP package and available in wide-lead spacing and SMD option. 1 23 4.

KPC6N135L Features

* 1. Pb free and RoHS compliant 2. High speed response tPHL, tPLH ( Max. 1.5us at RL=4.1KΩ ) 3. High common mode rejection voltage ( CMH:TYP. 1KV/us ) 4. Standard dual-in-line package 5. MSL class 1 6. Agency Approvals:

* UL Approved (No. E169586): UL1577

* c-UL Approved (No. E169586)

KPC6N135-Cosmo.pdf

This datasheet PDF includes multiple part numbers: KPC6N135L, KPC6N135. Please refer to the document for exact specifications by model.

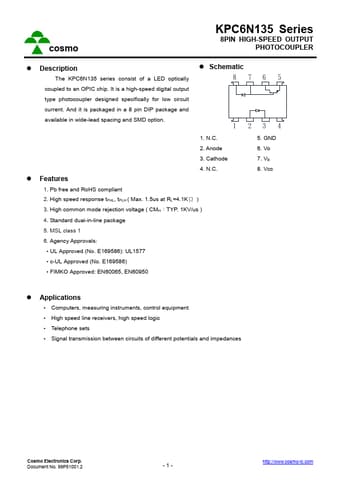

KPC6N135L Datasheet Preview Page 2 KPC6N135L Datasheet Preview Page 3

Datasheet Details

Part number:

KPC6N135L, KPC6N135

Manufacturer:

Cosmo

File Size:

333.89 KB

Description:

8pin high-speed output photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KPC6N135L, KPC6N135.
Please refer to the document for exact specifications by model.
