KPC6N136 - 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Product Overview

Cosmo

📥 Download Datasheet

KPC6N136 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER by Cosmo - Datasheet Preview — Datasheet preview – KPC6N136

Datasheet Details

Part number	KPC6N136
Manufacturer	Cosmo
File Size	325.48 KB
Description	8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
Datasheet	KPC6N136 Datasheet
Additional preview pages of the KPC6N136 datasheet.

Product details

Description

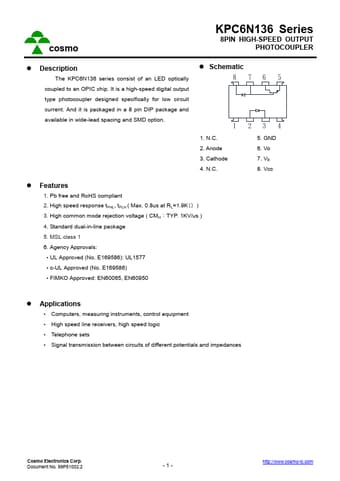

The KPC6N136 series consist of an LED optically coupled to an OPIC chip. Schematic 876 5 1 1. N.C.2. Anode 3. Cathode 4. N.C.23 4 5. GND 6. Vo 7. VB 8. Vcc

Features

s 1. Pb free and RoHS compliant 2. High speed response tPHL, tPLH ( Max. 0.8us at RL=1.9KΩ ) 3. High common mode rejection voltage ( CMH：TYP. 1KV/us ) 4. Standard dual-in-line package 5. MSL class 1 6. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
FIMKO Approved: EN60065, EN60950.
