KPC6N136S

8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

KPC6N136S Features

* 1. Pb free and RoHS compliant 2. High speed response tPHL, tPLH ( Max. 0.8us at RL=1.9KΩ ) 3. High common mode rejection voltage ( CMH：TYP. 1KV/us ) 4. Standard dual-in-line package 5. MSL class 1 6. Agency Approvals:

* UL Approved (No. E169586): UL1577

* c-UL Approved (No. E169586)

KPC6N136S General Description

The KPC6N136 series consist of an LED optically coupled to an OPIC chip. It is a high-speed digital output type photocoupler designed specifically for low circuit current. And it is packaged in a 8 pin DIP package and available in wide-lead spacing and SMD option.
* Schematic 876 5 1 1. N.C. 2.

KPC6N136S Datasheet (325.48 KB)

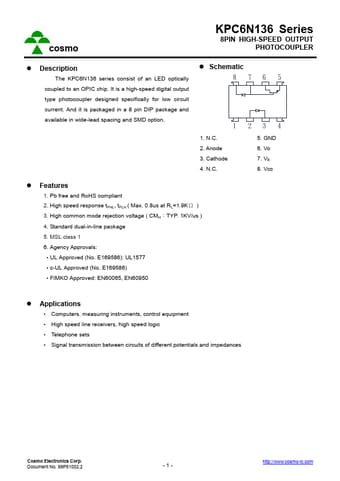

Preview of KPC6N136S PDF

Datasheet Details

Part number:

KPC6N136S

Manufacturer:

Cosmo

File Size:

325.48 KB

Description:

8pin high-speed output photocoupler.
