KPC6N136L - 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Download the KPC6N136L datasheet PDF. This datasheet also covers the KPC6N136 variant, as both devices belong to the same 8pin high-speed output photocoupler family and are provided as variant models within a single manufacturer datasheet.

Description

The KPC6N136 series consist of an LED optically coupled to an OPIC chip.

It is a high-speed digital output type photocoupler designed specifically for low circuit current.

And it is packaged in a 8 pin DIP package and available in wide-lead spacing and SMD option.

1.

N.C.

Features

  • s 1. Pb free and RoHS compliant 2. High speed response tPHL, tPLH ( Max. 0.8us at RL=1.9KΩ ) 3. High common mode rejection voltage ( CMH：TYP. 1KV/us ) 4. Standard dual-in-line package 5. MSL class 1 6. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • FIMKO Approved: EN62368-1, EN60601-1.
  • VDE Approved (No. 40020973): DIN EN60747-5-5.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KPC6N136-Cosmo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KPC6N136L
Manufacturer Cosmo
File Size 351.37 KB
Description 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
Datasheet download datasheet KPC6N136L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KPC614 Photocoupler Kodenshi
KPC684x3CD5B7xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x3CD5C9xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x4AD5B7xxxx SNUBBER CAPACITORS CAMEL TECHNOLOGY
KPC684x4AD5C9xxxA SNUBBER CAPACITORS CAMEL TECHNOLOGY

Other Datasheets by Cosmo

Part Number Description
KPC6N136 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
KPC6N136H 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
KPC6N136S 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
KPC6N135 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER
KPC6N135H 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

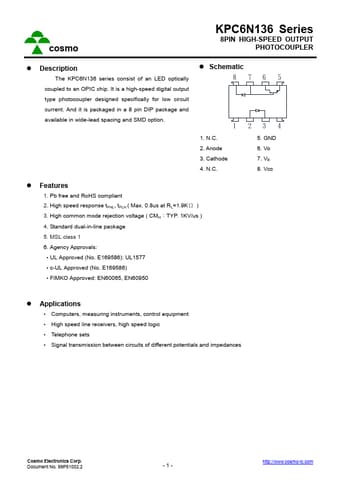

cosmo KPC6N136 Series 8PIN HIGH-SPEED OUTPUT PHOTOCOUPLER  Description The KPC6N136 series consist of an LED optically coupled to an OPIC chip. It is a high-speed digital output type photocoupler designed specifically for low circuit current. And it is packaged in a 8 pin DIP package and available in wide-lead spacing and SMD option.  Schematic 876 5 1 1. N.C. 2. Anode 3. Cathode 4. N.C. 234 5. GND 6. Vo 7. VB 8. Vcc  Features 1. Pb free and RoHS compliant 2. High speed response tPHL, tPLH ( Max. 0.8us at RL=1.9KΩ ) 3. High common mode rejection voltage ( CMH：TYP. 1KV/us ) 4. Standard dual-in-line package 5. MSL class 1 6. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • FIMKO Approved: EN62368-1, EN60601-1 • VDE Approved (No.
