KPC357NT0WC, KPC357NT0W - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER

KPC357NT0WC Description

cosmo KPC357NT0W Series 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER * .
The KPC357NT0W is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor.

KPC357NT0WC Features

* 1. Halogen free 2. Pb free and RoHS compliant 3. Low input current type (IF=0.5mA) 4. Current transfer ratio (CTR : 100~600% at IF=0.5mA Vce=5V) 5. High collector-emitter voltage (Vceo:80V) 6. High isolation voltage between input and output (Viso:3750Vrms) 7. Mini-flat package: compact 4 pin SOP wit

KPC357NT0WC Applications

* Computer terminals, programmable controllers
* Facsimile equipment, audio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KPC357NT0WC, KPC357NT0W. Please refer to the document for exact specifications by model.

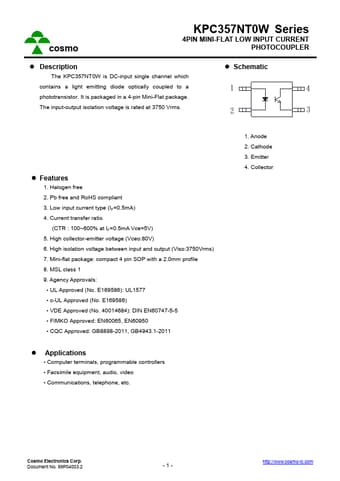

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPC357NT0WC, KPC357NT0W
Manufacturer
Cosmo
File Size
206.83 KB
Datasheet
KPC357NT0W-Cosmo.pdf
Description
4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER
Note
This datasheet PDF includes multiple part numbers: KPC357NT0WC, KPC357NT0W.
Please refer to the document for exact specifications by model.
