KTLP3502 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics Corporation

Datasheet Details

Part number	KTLP3502
Manufacturer	COSMO Electronics Corporation
File Size	243.51 KB
Description	8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet	KTLP3502 Datasheet
Additional preview pages of the KTLP3502 datasheet.

Product details

Description

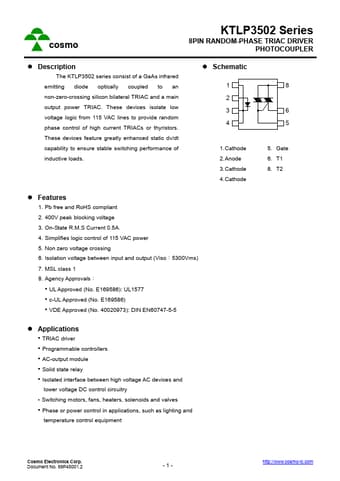

The KTLP3502 series consist of a GaAs infrared emitting diode optically coupled to an non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC. Schematic 1 2 3 4 8 6 5 1. Cathode 2. Anode 3. Cathode 4. Cathode 5. Gate 6. T1

Features

s 1. Pb free and RoHS compliant 2. 400V peak blocking voltage 3. On-State R. M. S Current 0.5A. 4. Simplifies logic control of 115 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：5300Vms) 7. MSL class 1 8. Agency Approvals：.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
VDE Approved (No. 40020973): DIN EN60747-5-5.
Applica.
