KTLP3502H

8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

KTLP3502H Features

* 1. Pb free and RoHS compliant 2. 400V peak blocking voltage 3. On-State R.M.S Current 0.5A. 4. Simplifies logic control of 115 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：5300Vms) 7. MSL class 1 8. Agency Approvals：

* UL Approved (No. E169586):

KTLP3502H General Description

The KTLP3502 series consist of a GaAs infrared emitting diode optically coupled to an non-zero-crossing silicon bilateral TRIAC and a main output power TRIAC. These devices isolate low voltage logic from 115 VAC lines to provide random phase control of high current TRIACs or thyristors. These device.

KTLP3502H Datasheet (243.51 KB)

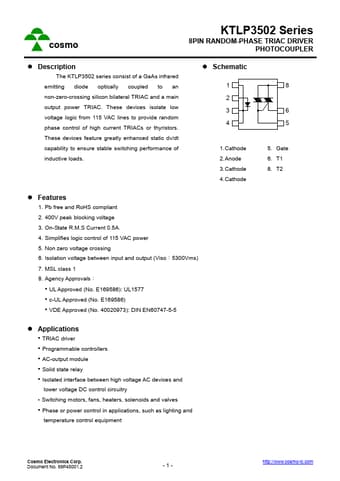

Preview of KTLP3502H PDF

Datasheet Details

Part number:

KTLP3502H

Manufacturer:

Cosmo

File Size:

243.51 KB

Description:

8pin random-phase triac driver photocoupler.
