KTLP350, 8PIN IGBT GATE DRIVE PHOTOCOUPLER

cosmo * .
The KTLP350 series consists of an GaAlAs light emitter diode and an integrated.

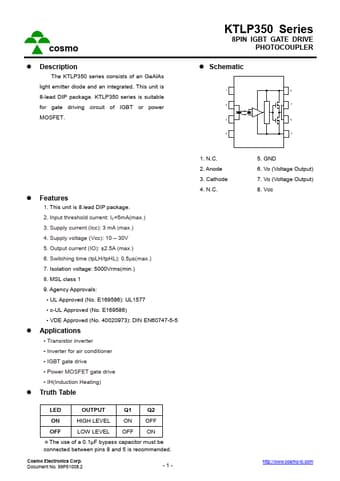

datasheet Preview Page 1 from Datasheet4u.com

KTLP350-Cosmo.pdf

KTLP350 Datasheet Preview — Preview of KTLP350 PDF

Datasheet Details

Part number:

KTLP350

Manufacturer:

Cosmo

File Size:

336.78 KB

Description:

8PIN IGBT GATE DRIVE PHOTOCOUPLER

Features

* 1. This unit is 8.lead DIP package. 2. Input threshold current: IF=5mA(max. ) 3. Supply current (Icc): 3 mA (max. ) 4. Supply voltage (Vcc): 10
* 30V 5. Output current (IO): ±2.5A (max. ) 6. Switching time (tpLH/tpHL): 0.5µs(max. ) 7. Isolation voltage: 5000Vrms(min. ) 8. MSL class 1 9. Agency Ap

Applications

* Transistor inverter
* Inverter for air conditioner
* IGBT gate drive
* Power MOSFET gate drive
* IH(Induction Heating)
* Truth Table LED OUTPUT Q1 Q2 ON HIGH LEVEL ON OFF OFF LOW LEVEL OFF ON ＊The use of a 0.1μF bypass capacitor must
