KMOC3063L, KMOC3063 Datasheet - COSMO Electronics

KMOC3063L 5PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

The KMOC3061 、 KMOC3062 、 KMOC3063 * Schematic series consist of a GaAs infrared emitting diode 1 optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use 2 3 Z.C with a TRIAC in the interface of.

KMOC3063L Features

* 1. Pb free and RoHS compliant 6. Main terminal 2. 600V peak blocking voltage 3. Simplifies logic control of 115/240 VAC power 4. Zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：

* UL Approved (No. E169586): UL1577

KMOC3063_COSMOElectronics.pdf

This datasheet PDF includes multiple part numbers: KMOC3063L, KMOC3063. Please refer to the document for exact specifications by model.

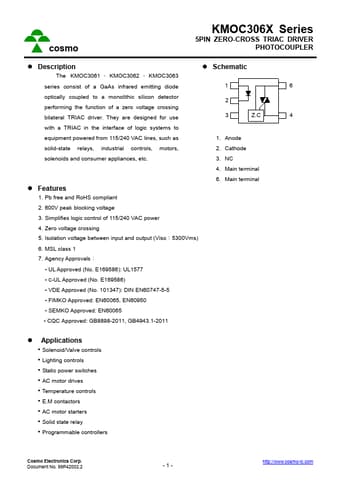

KMOC3063L Datasheet Preview Page 2 KMOC3063L Datasheet Preview Page 3

Datasheet Details

Part number:

KMOC3063L, KMOC3063

Manufacturer:

COSMO Electronics

File Size:

254.42 KB

Description:

5pin zero-cross triac driver photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KMOC3063L, KMOC3063.
Please refer to the document for exact specifications by model.
