KMOC3011 - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Product Overview

Cosmo

Datasheet Details

Part number	KMOC3011
Manufacturer	Cosmo
File Size	242.28 KB
Description	4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet	KMOC3011 Datasheet

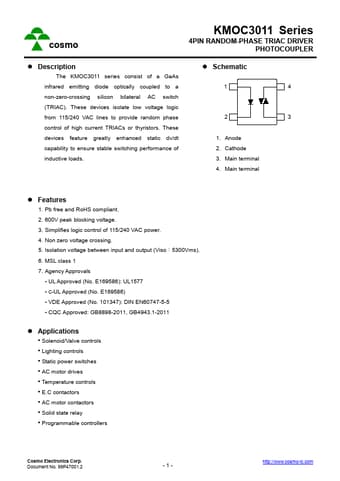

Additional preview pages of the KMOC3011 datasheet.

Product details

Description

The KMOC3011 series consist of a GaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (TRIAC). Schematic 1 2 1. Anode 2. Cathode 3. Main terminal 4. Main terminal 4 3

Features

s 1. Pb free and RoHS compliant. 2. 600V peak blocking voltage. 3. Simplifies logic control of 115/240 VAC power. 4. Non zero voltage crossing. 5. Isolation voltage between input and output (Viso：5300Vms). 6. MSL class 1 7. Agency Approvals.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approved (No. 101347): DIN EN60747-5-5.
CQC Approved: GB8898-2011, GB4943.1-2011.
