KMOC3023H

5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

COSMO Electronics

KMOC3023H Features

* 1. Pb free and RoHS compliant 2. 400V peak blocking voltage 3. Simplifies logic control of 115 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：

* UL Approved (No. E169586): UL1577

* C-UL Approved (

KMOC3023H General Description

The KMOC3021 、 KMOC3022 、 KMOC3023 series are optically isolated TRIAC driver devices. These series contain a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a TRIAC. They are designed for interfacing between electronic controls and power TRIACs to c.

KMOC3023H Datasheet (253.40 KB)

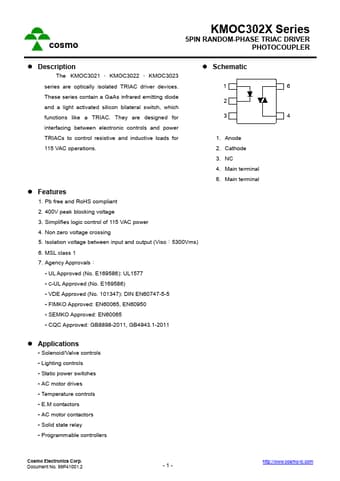

KMOC3023H Datasheet Preview — Preview of KMOC3023H PDF

Datasheet Details

Part number:

KMOC3023H

Manufacturer:

COSMO Electronics

File Size:

253.40 KB

Description:

5pin random-phase triac driver photocoupler.
