KMOC3011S, KMOC3011 - 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

KMOC3011S Description

cosmo KMOC3011 Series 4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER * .
The KMOC3011 series consist of a GaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (TRIAC).

KMOC3011S Features

* 1. Pb free and RoHS compliant. 2. 600V peak blocking voltage. 3. Simplifies logic control of 115/240 VAC power. 4. Non zero voltage crossing. 5. Isolation voltage between input and output (Visoļ¼š5300Vms). 6. MSL class 1 7. Agency Approvals
* UL Approved (No. E169586): UL1577
* C-UL Ap

KMOC3011S Applications

* Solen

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KMOC3011S, KMOC3011. Please refer to the document for exact specifications by model.

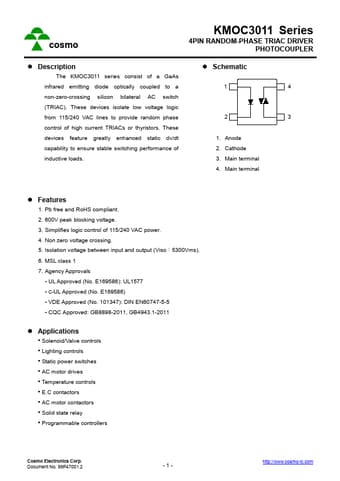

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KMOC3011S, KMOC3011
Manufacturer
Cosmo
File Size
242.28 KB
Datasheet
KMOC3011-Cosmo.pdf
Description
4PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Note
This datasheet PDF includes multiple part numbers: KMOC3011S, KMOC3011.
Please refer to the document for exact specifications by model.
