KMOC3023L - 5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics

Datasheet Details

Part number	KMOC3023L
Manufacturer	COSMO Electronics
File Size	253.40 KB
Description	5PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet	KMOC3023L Datasheet
Note	This datasheet PDF includes multiple part numbers: KMOC3023L, KMOC3023. Please refer to the document for exact specifications by model.

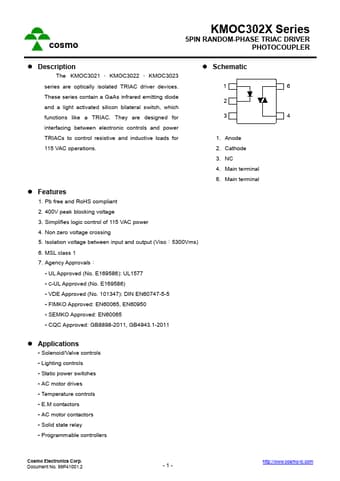

Additional preview pages of the KMOC3023L datasheet.

Product details

Description

The KMOC3021 、 KMOC3022 、 KMOC3023 series are optically isolated TRIAC driver devices. Schematic 1 2 3 1. Anode 2. Cathode 3. NC 4. Main terminal 6. Main terminal

Features

Pb free and RoHS compliant 2. 400V peak blocking voltage 3. Simplifies logic control of 115 VAC power 4. Non zero voltage crossing 5. Isolation voltage between input and output (Viso：5300Vms) 6. MSL class 1 7. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approved (No. 101347): DIN EN60747-5-5.
FIMKO Approved: EN60065, EN60950.
SEMKO Approved: EN60065.
CQC Approved: GB8898-2011, GB4943.1.
