CRG15T120BNR3S - Silicon FS Trench IGBT

CR Micro

📥 Download Datasheet

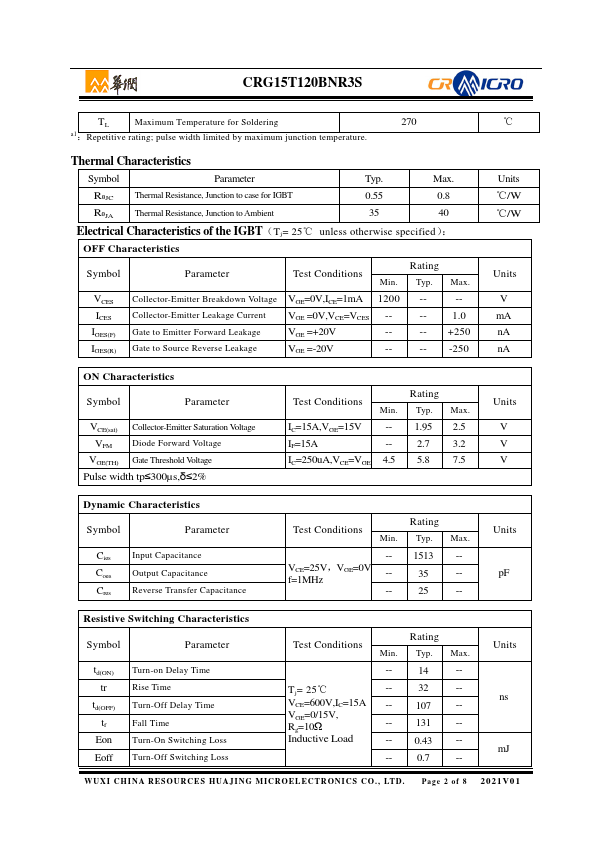

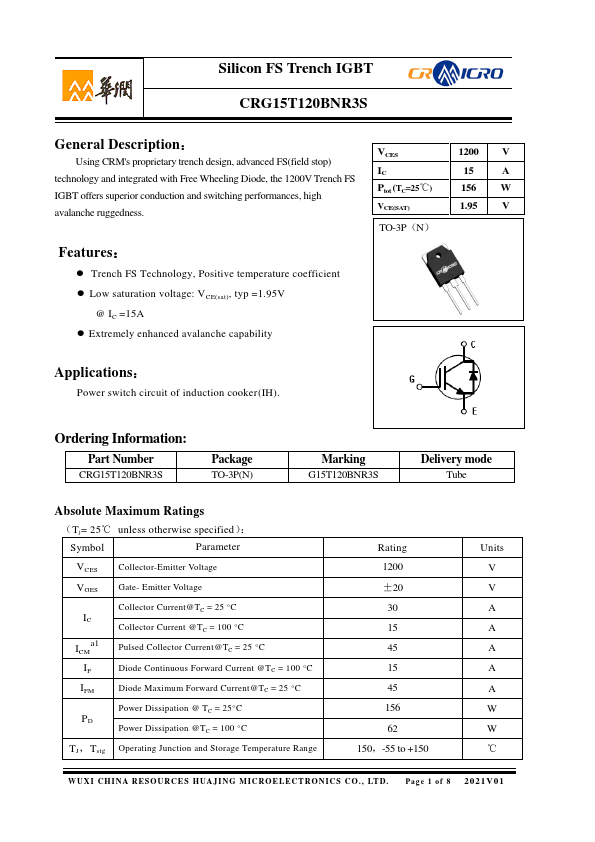

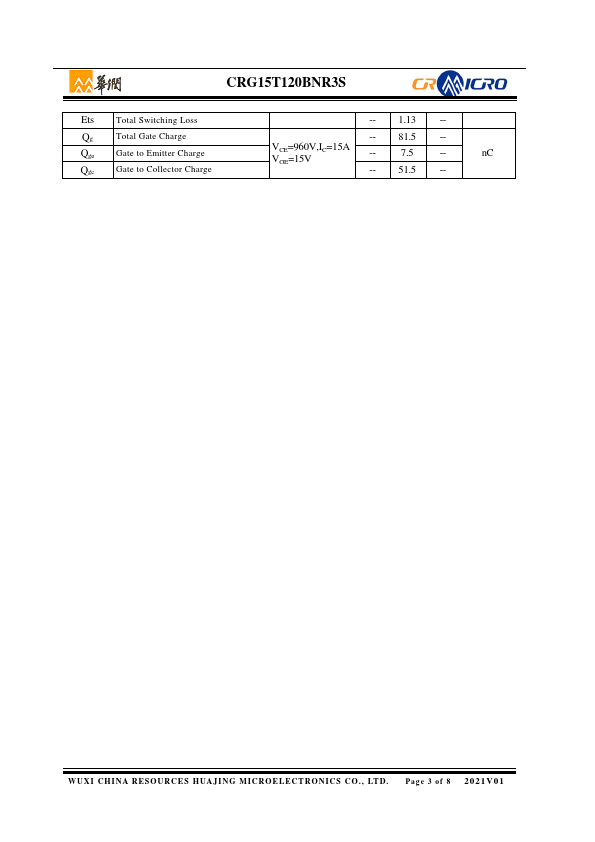

CRG15T120BNR3S Datasheet Preview — Preview of CRG15T120BNR3S PDF

Datasheet Details

Part number: CRG15T120BNR3S
Manufacturer: CR Micro
File Size: 484.62 KB
Datasheet: CRG15T120BNR3S-CRMicro.pdf
Description: Silicon FS Trench IGBT

CRG15T120BNR3S Product details

Description

Using CRM's proprietary trench design, advanced FS(field stop) technology and integrated with Free Wheeling Diode, the 1200V Trench FS IGBT offers superior conduction and switching performances, high avalanche ruggedness.

Features

Trench FS Technology, Positive temperature coefficient.
Low saturation voltage: VCE(sat), typ =1.95V @ IC =15A.
Extremely enhanced avalanche capability VCES IC Ptot (TC=25℃) VCE(SAT) TO-3P（N） 1200 V 15 A 156 W 1.95 V.
