CRG15T60A04S - IGBT

Description

Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

RoHS Compliant.

Features

FS Trench Technology, Positive temperature coefficient.
Low saturation voltage： VCE(sat),TYP=1.55V @IC=15A,VGE=15V； VCES IC VCE(sat) TO-263.

CR Micro

📥 Download Datasheet

Datasheet Details

Part number	CRG15T60A04S
Manufacturer	CR Micro
File Size	1.13 MB
Description	IGBT
Datasheet	CRG15T60A04S Datasheet

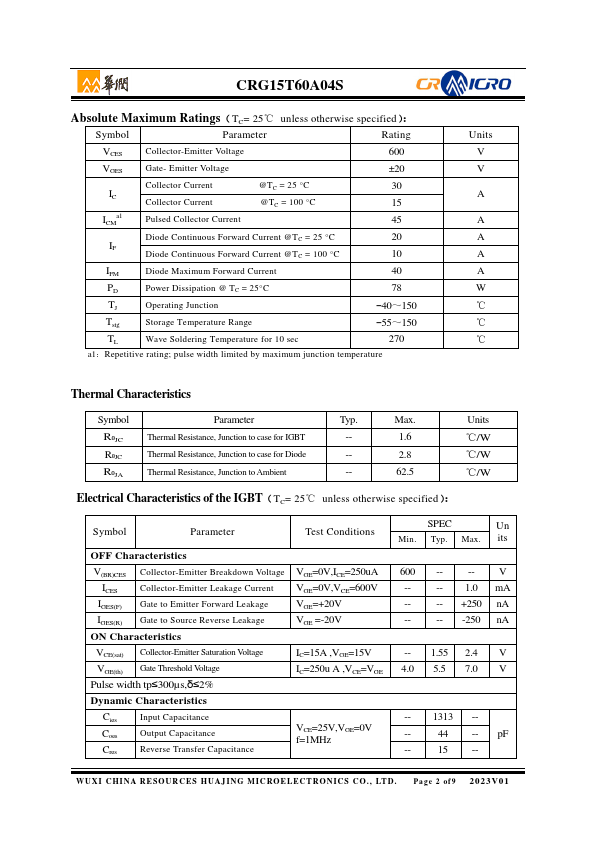

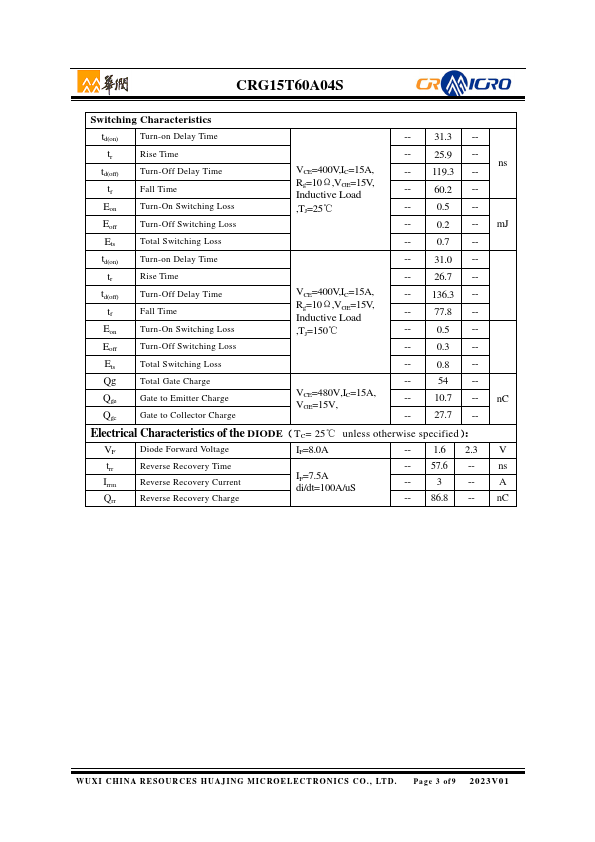

Additional preview pages of the CRG15T60A04S datasheet.

📁 Similar Datasheet

CRG10A - Rectifier Diode (Toshiba)
CRG1206 - Thick Film Chip Resistors (TE)
CRG01 - Rectifier (Toshiba Semiconductor)
CRG02 - Rectifier (Toshiba Semiconductor)
CRG0201 - Thick Film Chip Resistors (TE)
CRG04 - Rectifier Diode (Toshiba)
CRG0402 - Thick Film Chip Resistors (TE)
CRG04A - Rectifier Diode (Toshiba)
CRG05 - Rectifier (Toshiba)
CRG0603 - Thick Film Chip Resistors (TE)

Other Datasheets by CR Micro

Full PDF Text Transcription

Click to expand full text

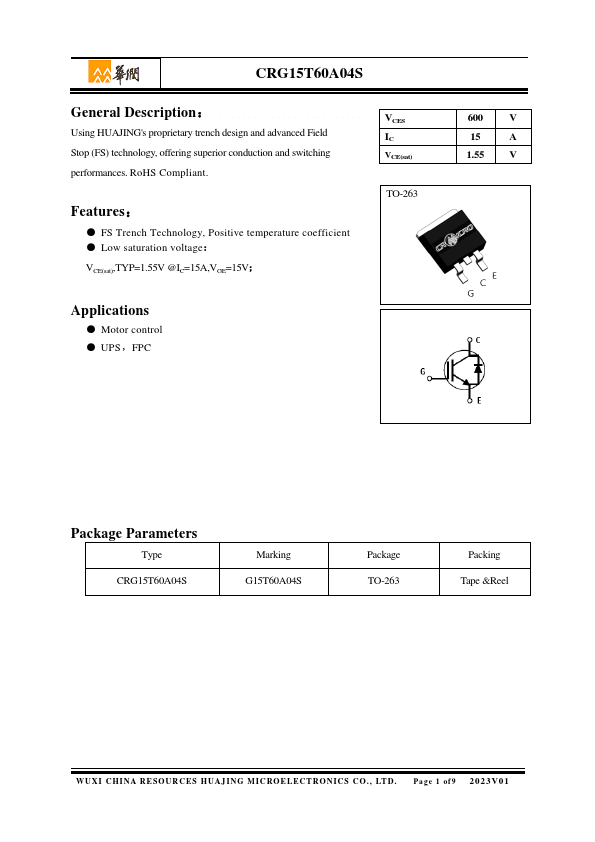

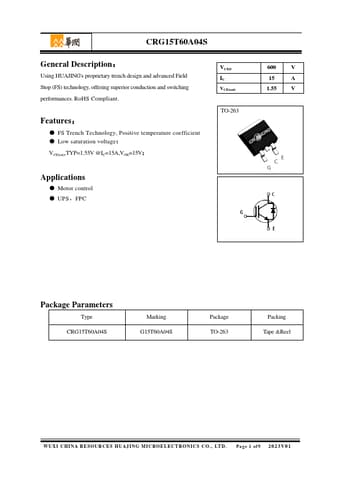

CRG15T60A04S General Description： Using HUAJING's proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances. RoHS Compliant. Features： ● FS Trench Technology, Positive temperature coefficient ● Low saturation voltage： VCE(sat),TYP=1.55V @IC=15A,VGE=15V； VCES IC VCE(sat) TO-263 Applications ● Motor control ● UPS，FPC 600 V 15 A 1.55 V Package Parameters Type CRG15T60A04S Marking G15T60A04S Package TO-263 Packing Tape &Reel WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO., LTD.
