CRG15T65R05SDZ-G - IGBT

CR Micro

📥 Download Datasheet

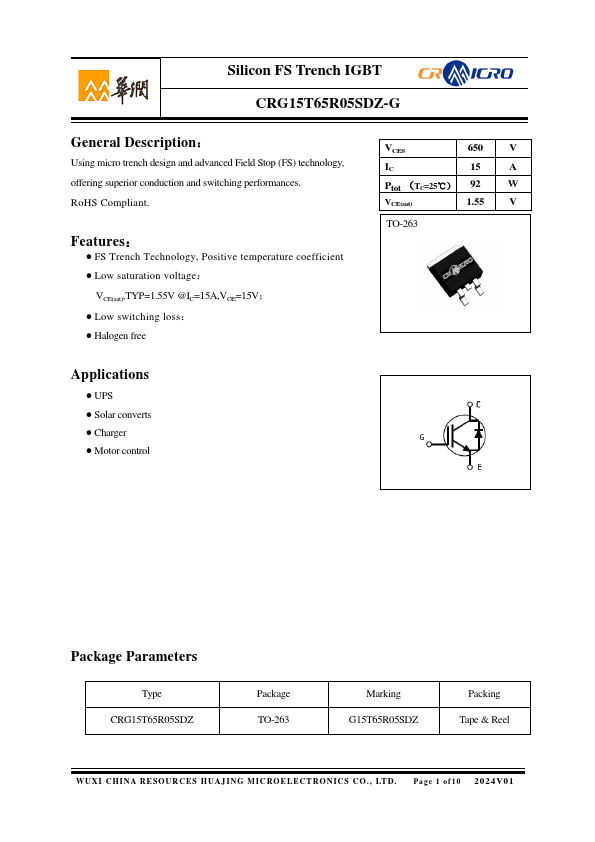

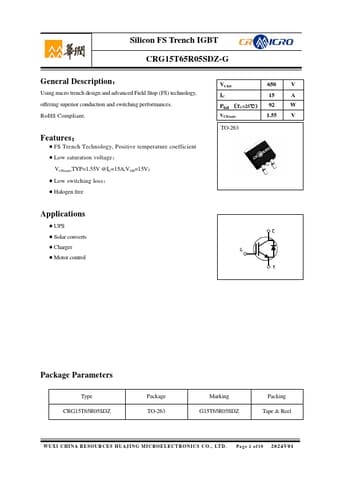

CRG15T65R05SDZ-G Datasheet Preview — Preview of CRG15T65R05SDZ-G PDF

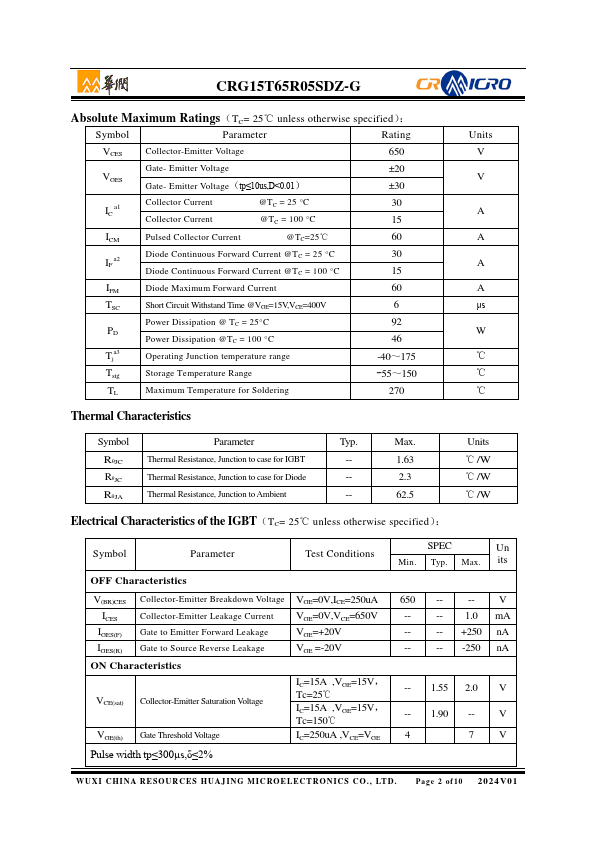

datasheet Preview Page 2

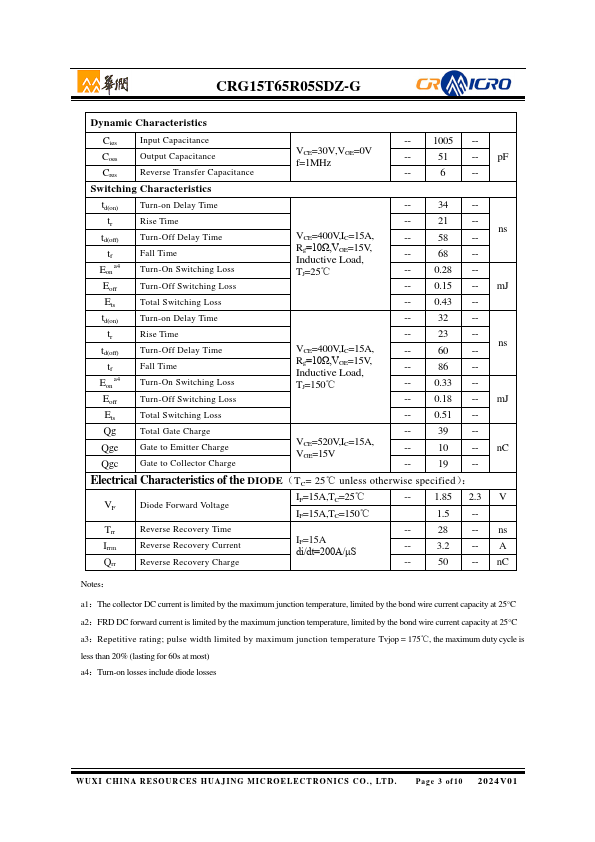

datasheet Preview Page 3

Datasheet Details

Part number	CRG15T65R05SDZ-G
Manufacturer	CR Micro
File Size	866.49 KB
Description	IGBT
Datasheet	CRG15T65R05SDZ-G-CRMicro.pdf

CRG15T65R05SDZ-G Product details

Description

Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

Features

FS Trench Technology, Positive temperature coefficient.
Low saturation voltage： VCE(sat),TYP=1.55V @IC=15A,VGE=15V；.
Low switching loss：.
Halogen free VCES 650 V IC 15 A Ptot （TC=25℃） 92 W VCE(sat) 1.55 V TO-263.
