CRG40T120CK3LDQ Silicon FS Trench IGBT

CR Micro

Description

Silicon FS Trench IGBT CRG40T120CK3LDQ General .
Using owner proprietary trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

📥 Download Datasheet

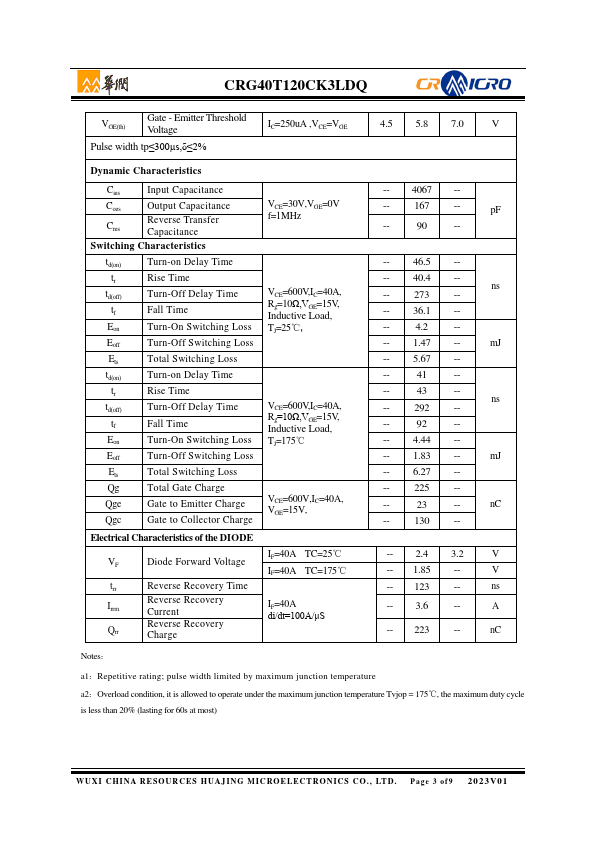

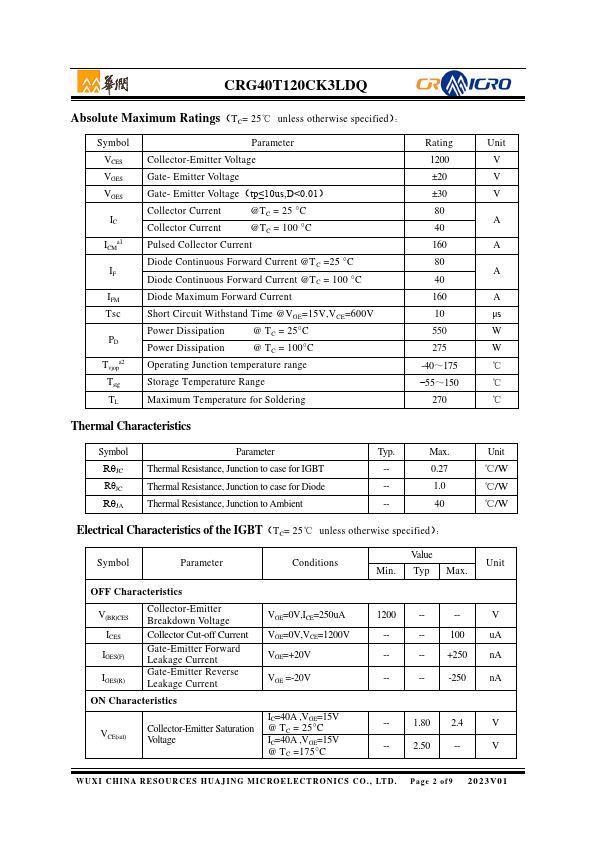

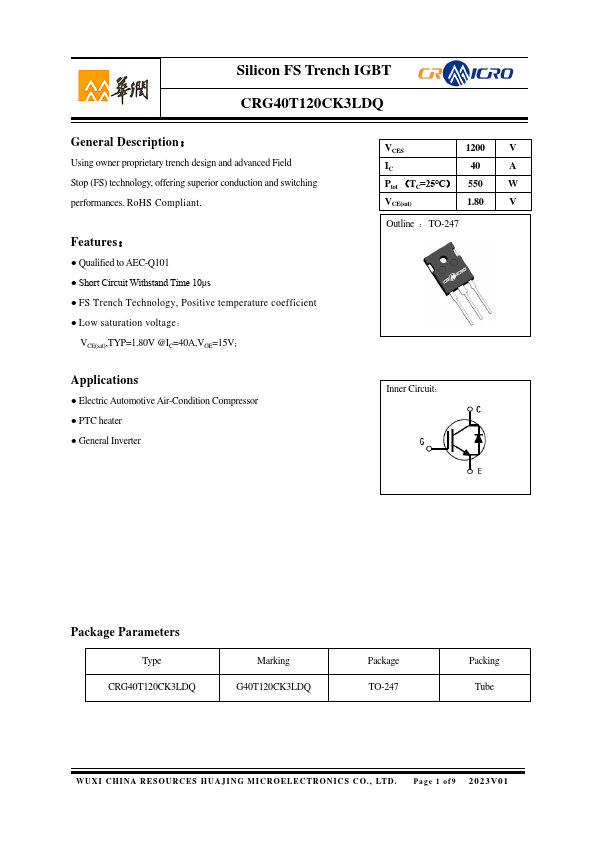

CRG40T120CK3LDQ Datasheet Preview — Preview of CRG40T120CK3LDQ PDF

Datasheet Specifications

Part number: CRG40T120CK3LDQ
Manufacturer: CR Micro
File Size: 1.10 MB
Datasheet: CRG40T120CK3LDQ-CRMicro.pdf
Description: Silicon FS Trench IGBT

Features

* Qualified to AEC-Q101
* Short Circuit Withstand Time 10μs
* FS Trench Technology, Positive temperature coefficient

Applications

* Electric Automotive Air-Condition Compressor
* PTC heater
* General Inverter Inner Circuit： Package Parameters Type CRG40T120CK3LDQ Marking G40T120CK3LDQ Package TO-247 Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 9 2023V01 CRG40T120CK3LDQ Abso
