CRG75T75AQF5SDZ, Silicon FS Trench IGBT

Silicon FS Trench IGBT CRG75T75AQF5SDZ General .
Using micro trench design and advanced Field Stop (FS) technology, offering superior conduction and switching performances.

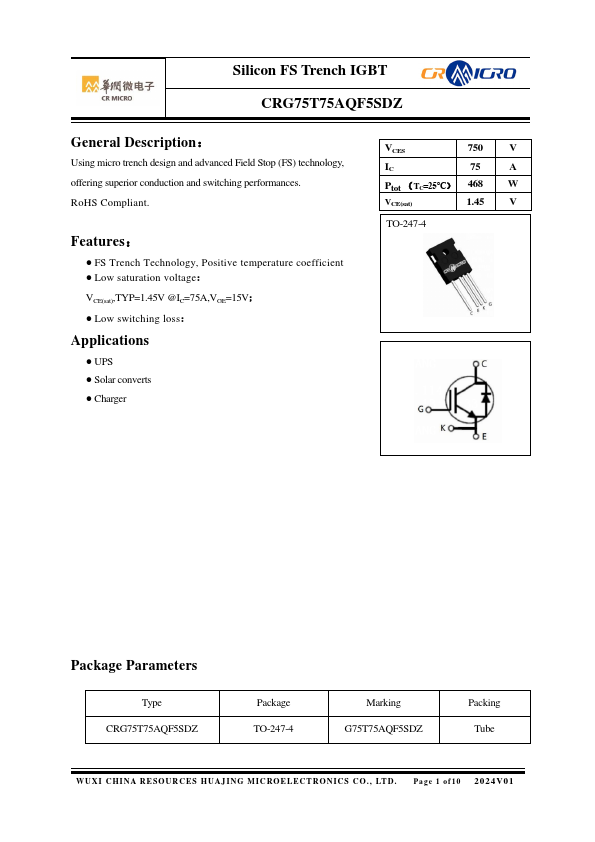

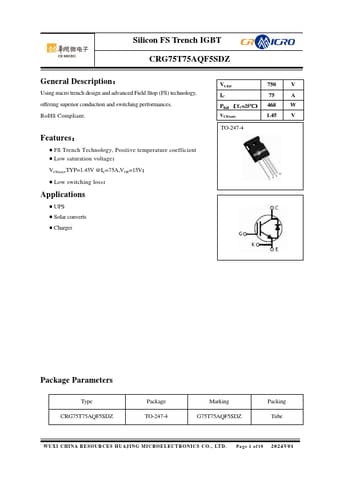

datasheet Preview Page 1 from Datasheet4u.com

CRG75T75AQF5SDZ-CRMicro.pdf

CRG75T75AQF5SDZ Datasheet Preview — Preview of CRG75T75AQF5SDZ PDF

Datasheet Details

Part number:

CRG75T75AQF5SDZ

Manufacturer:

CR Micro

File Size:

1.38 MB

Description:

Silicon FS Trench IGBT

Features

* FS Trench Technology, Positive temperature coefficient
* Low saturation voltage： VCE(sat),TYP=1.45V @IC=75A,VGE=15V；

Applications

* UPS
* Solar converts
* Charger VCES 750 V IC 75 A Ptot （TC=25℃） 468 W VCE(sat) 1.45 V TO-247-4 Package Parameters Type CRG75T75AQF5SDZ Package TO-247-4 Marking G75T75AQF5SDZ Packing Tube WUXI CHINA RESOURCES HUAJING MICROELECTRONICS CO. , LTD. Page 1 of 10 2024V01 CRG75T
