HWD2180

Dual 250 mW Audio Power Amplifier

HWD2180 Features

* an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism. The unity-gain stable HWD2180 can be configured by external gain-setting resistors. Key Specifications n THD+N at 1kHz at 200mW continuous average output power into 8Ω: 0.1% (

HWD2180 General Description

The HWD2180 is a dual audio power amplifier capable of delivering typically 250mW per channel of continuous average power to an 8Ω load with 0.1% THD+N using a 5V power supply. audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external co.

HWD2180 Datasheet (555.04 KB)

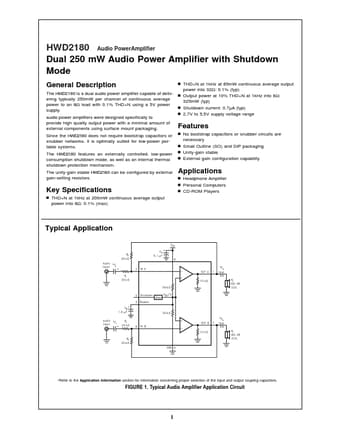

HWD2180 Datasheet Preview — Preview of HWD2180 PDF

Datasheet Details

Part number:

HWD2180

Manufacturer:

CSMSC

File Size:

555.04 KB

Description:

Dual 250 mw audio power amplifier.
