HWD2038 - Mono 2W Audio Power Amplifiers

HWD2038 Description

CS2 DATA SHEET HWD2038 * * Mono 2W Audio Power Amplifiers with DC Volume Control z General .
-The HWD2038 is a monolithic integrated circuit that provides DC volume control, and mono bridged audio power amplifiers capable of producin.

HWD2038 Features

* an externally controlled, low-power consumption shutdown mode, and thermal shutdown protection. It also utilizes circuitry to reduce “clicks and pops” during device turn-on. z Key Specifications
* PO at（1％ THD＋N）
* Shutdown current z Features into 3Ω into 4Ω into 8Ω 2.2W （typ） 2.0W （typ） 1

HWD2038 Applications

* Portable and Desktop Computers
* Multimedia Monitors
* Portable Radios, PDAs, and Portable TVs Rev1.1 -1- 100524 CS2 z Operating Ratings（Note 1）
* Temperature Range
* Supply Voltage z Typical Application DATA SHEET ﹣40℃～85℃ 2.5V≤VDD≤5.5V FIGURE 1. HWD2038 Block Diagram Rev1.1

📥 Download Datasheet

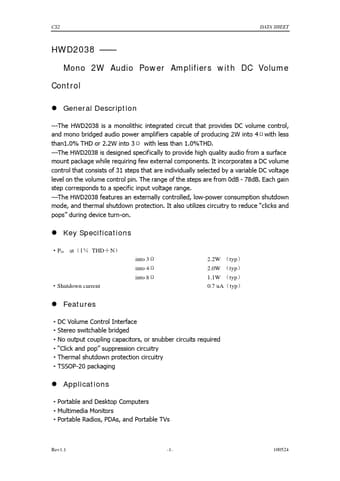

Preview of HWD2038 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HWD2038
Manufacturer
ETC
File Size
174.25 KB
Datasheet
HWD2038-ETC.pdf
Description
Mono 2W Audio Power Amplifiers
