HWD2163

Dual 2.2W Audio Amplifier Plus Stereo Headphone Function

HWD2163 Features

* an externally controlled, low-power consumption shutdown mode, a stereo headphone amplifier mode, and thermal shutdown protection. It also utilizes circuitry to reduce “clicks and pops” during device turn-on. Note 1: An HWD2163IUP or HWD2163IVG that has been properly mounted to a circuit board will

HWD2163 General Description

Key Specifications The HWD2163 is a dual bridge-connected audio power amplifier which, when connected to a 5V supply, will deliver 2.2W to a 4Ω load (Note 1) or 2.5W to a 3Ω load (Note 2) with less than 1.0% THD+N. In addition, the headphone input pin allows the amplifiers to operate in single-end.

HWD2163 Datasheet (1.08 MB)

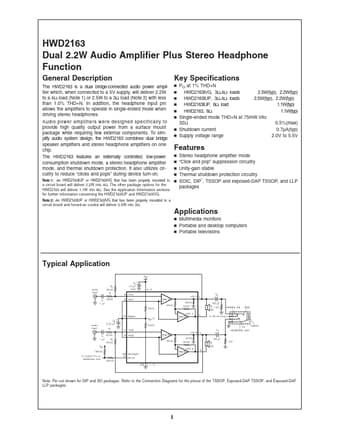

Preview of HWD2163 PDF

Datasheet Details

Part number:

HWD2163

Manufacturer:

CSMSC

File Size:

1.08 MB

Description:

Dual 2.2w audio amplifier plus stereo headphone function.
