CT357B1 - DC Input 4-Pin Mini-Flat Phototransistor Optocoupler

Product Overview

CT Micro

Datasheet Details

Part number	CT357B1
Manufacturer	CT Micro
File Size	1.04 MB
Description	DC Input 4-Pin Mini-Flat Phototransistor Optocoupler
Datasheet	CT357B1 Datasheet

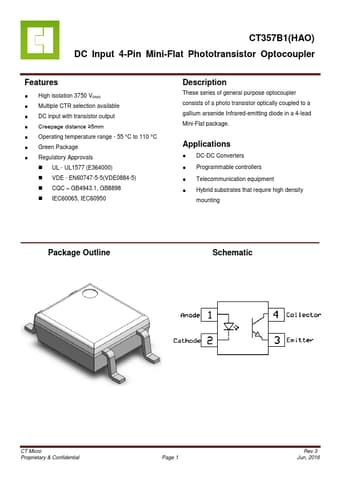

Additional preview pages of the CT357B1 datasheet.

Product details

Description

These series of general purpose optocoupler consists of a photo transistor optically coupled to a gallium arsenide Infrared-emitting diode in a 4-lead Mini-Flat package. DC-DC Converters Programmable controllers Telecommunication equipment Hybrid substrates that require high density mounting Package Outline Schematic CT Micro Proprietary & Confidential Page 1 Rev 3 Jun, 2016 CT357B1(HAO) DC Input 4-Pin Mini-Flat Phototransistor Optocoupler Absolute Max

Features

High isolation 3750 VRMS.
Multiple CTR selection available.
DC input with transistor output.
Creepage distance ≥5mm.
Operating temperature range - 55 °C to 110 °C.
Green Package.
Regulatory Approvals.
UL - UL1577 (E364000).
VDE - EN60747-5-5(VDE0884-5).
CQC.
GB4943.1, GB8898.
IEC60065, IEC60950.
