CT350

MOSFET/IGBT Gate Driver Optocoupler

CT Micro

CT350 Features

* Peak Output Current : IOP = ±2.5A (max)

* Threshold Input Current: IFLH = 5 mA (max)

* Common mode transient immunity : ±20kV/µs ）(min

* Under voltage lock out (UVLO) protection with hysteresis

* Pb free and RoHS compliant. Applications

* Isolated IG

CT350 General Description

The CT350 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages.

CT350 Datasheet (1.71 MB)

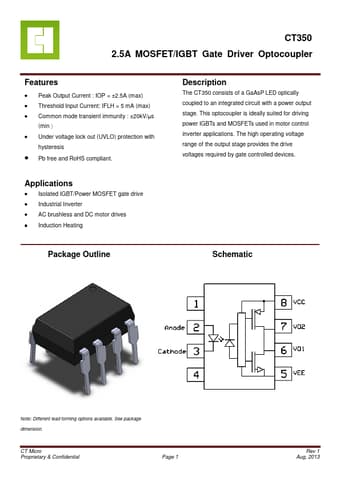

CT350 Datasheet Preview — Preview of CT350 PDF

Datasheet Details

Part number:

CT350

Manufacturer:

CT Micro

File Size:

1.71 MB

Description:

Mosfet/igbt gate driver optocoupler.
