CT4502

High Speed Phototransistor Optocoupler

CT4502 Features

* High speed 1MBit/s

* High isolation voltage between input and output (Viso=5000 Vrms )

* Guaranteed CTR performance from 0°C to 70°C

* Wide operating temperature range of -55°C to 100°C

* Regulatory Approvals

* UL - UL1577 (E364000)

* VDE - EN60747-5-5(VDE0884-5)

CT4502 General Description

The 6N135, 6N136, CT4502 and CT4503 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventional photo.

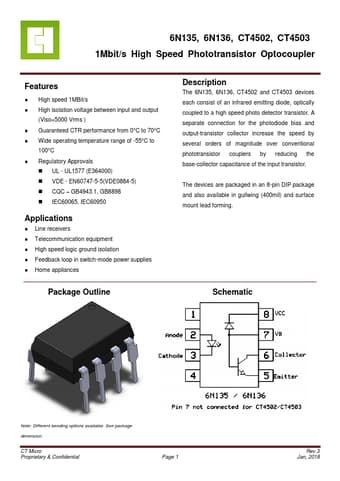

CT4502 Datasheet (1.23 MB)

Preview of CT4502 PDF

Datasheet Details

Part number:

CT4502

Manufacturer:

CT Micro

File Size:

1.23 MB

Description:

High speed phototransistor optocoupler.
